2.14 Pass Complete

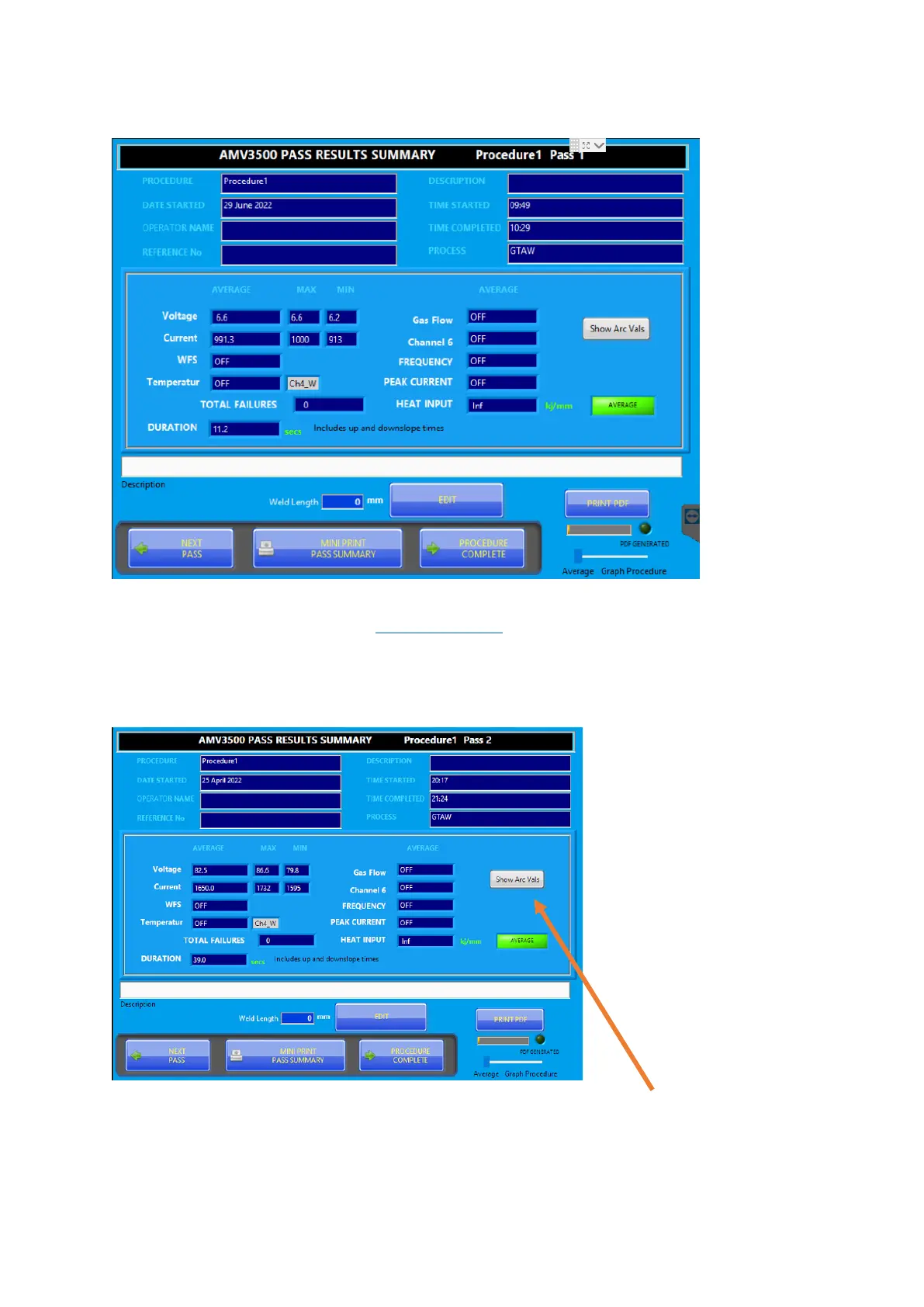

The PASS COMPLETE screen summarises the welding record. The options are:
• NEXT PASS this returns to the monitoring screen having increased the pass number
• MINI-PRINT PASS SUMMARY – prints out a copy of the pass averages if required.
• PROCEDURE COMPLETE – takes the software to the PROCODURE COMPLETE screen.
•
2.14.1 Arc values
If there are a number of arcs in the pass these can be viewed through the Show Arc Vals:
