Triton EDEN User Manual

Thermostatic bar mixer shower
8
150mm
1040mm approx
Datum
Hot
inlet
Cold
inlet
Bracket
mounting point

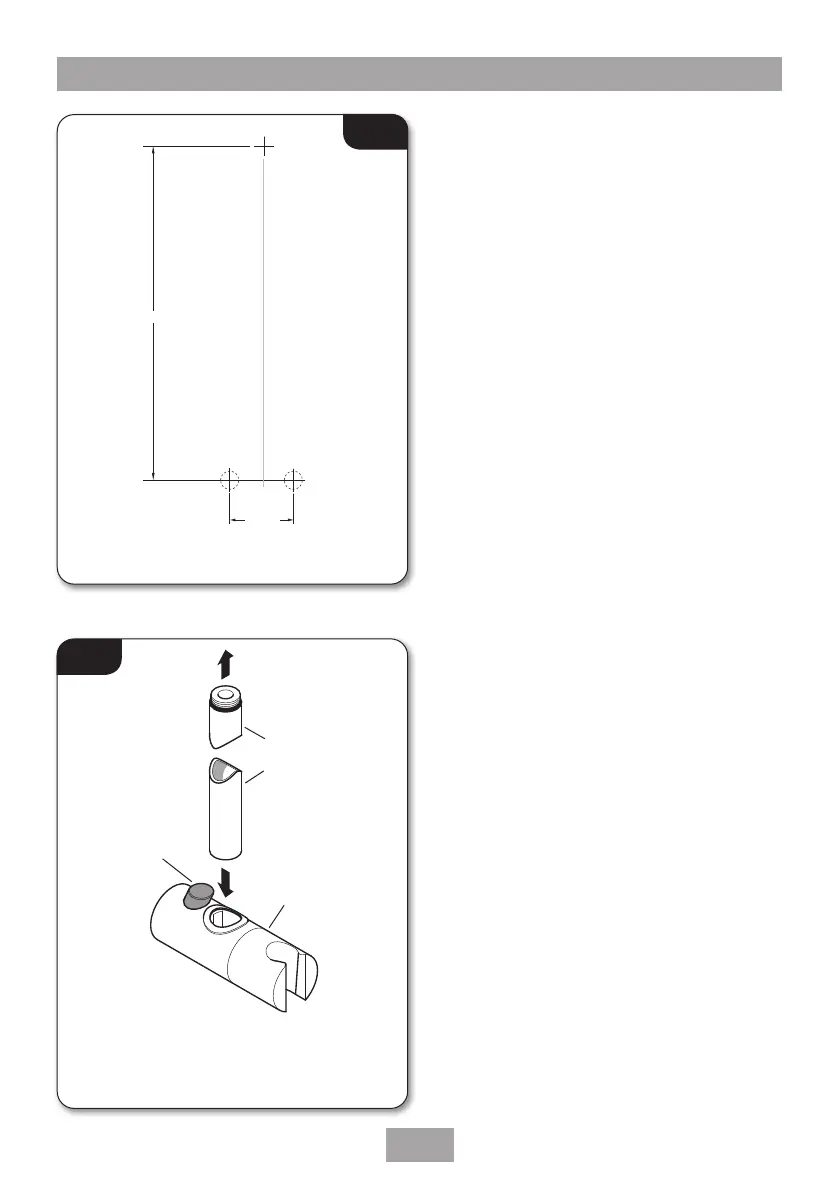

FITTING THE RISER PIPE/FIXED HEAD
• Mark the centre hole for the fixed
head mounting bracket at a height of
approximately 1040mm from the inlet datum
(fig.9).
IMPORTANT: All dimensions listed in this fitting
book regarding the product and installation are
approximate.
Note: The elongated hole in the mounting
bracket allows for a small amount of adjustment.
• Drill and plug the wall. An appropriate
drill bit should be used. If the wall is brick,
plasterboard or a soft building block,
appropriate wall plugs and screws should be
fitted.
• Secure the arm mounting plate to the wall.
• If the handset holder is required, depress the
button on the handset holder (fig.10), slide
the holder onto the pipe. The threaded
section of the riser pipe should be at the top.
• Screw the fixed showerhead arm to the top
of the riser pipe.
PLEASE NOTE: If the mixer is supplied with the
xed riser kit and the kit is to be used, it will
be necessary to remove the outlet adapter and
replace it with the collar and adapter assembly
supplied with the riser kit.
Fig.9
Fig.10
Riser pipe (threaded
section at the top)
Handset holder
Press button
and hold
to unlock
mechanism
