Thermostatic bar mixer shower
10
COMMISSIONING
• Start the water ow by rotating the ow
control spindle (left hand side) clockwise
(xed showerhead) or anti-clockwise
(handset).
• Make sure that the hot and cold water
supplies are fully open and at (or near to)
their design temperature and pressures, and
are within the requirements as stated on
page 2.
• Allow the shower to run until the water
temperature has stabilised.
• Rotate the temperature control spindle until
your maximum showering temperature is
reached.
FITTING THE CONTROLS
The mixer valve is supplied without the handle
controls tted. Once a comfortable showering
temperature has been established, turn the valve
off using the diverter control (6 o’clock position).
Fit the handles as shown in gs.14, 15a & 15b.
IMPORTANT: DO NOT over tighten tting
screws.
• Fit the temperature control, making sure
the maximum temperature stop pin is as
close to the flat edge of the temperature
stop as possible. (gs.14 & 15a). Secure
the temperature handle in place with the
retaining screw and fit the screw cap. DO
NOT over tighten.
• Fit the diverter control lever so that the lever
is in a 6 o’clock position. Secure the flow
handle in place with the retaining screw and
fit the screw cap. DO NOT over tighten.
REMOVING THE HANDLES FOR
MAINTENANCE
• Remove the lever cap from the temperature
control to allow access to the retaining screw.
Remove the retaining screw and pull the
temperature control off (gs.15a & 15b).

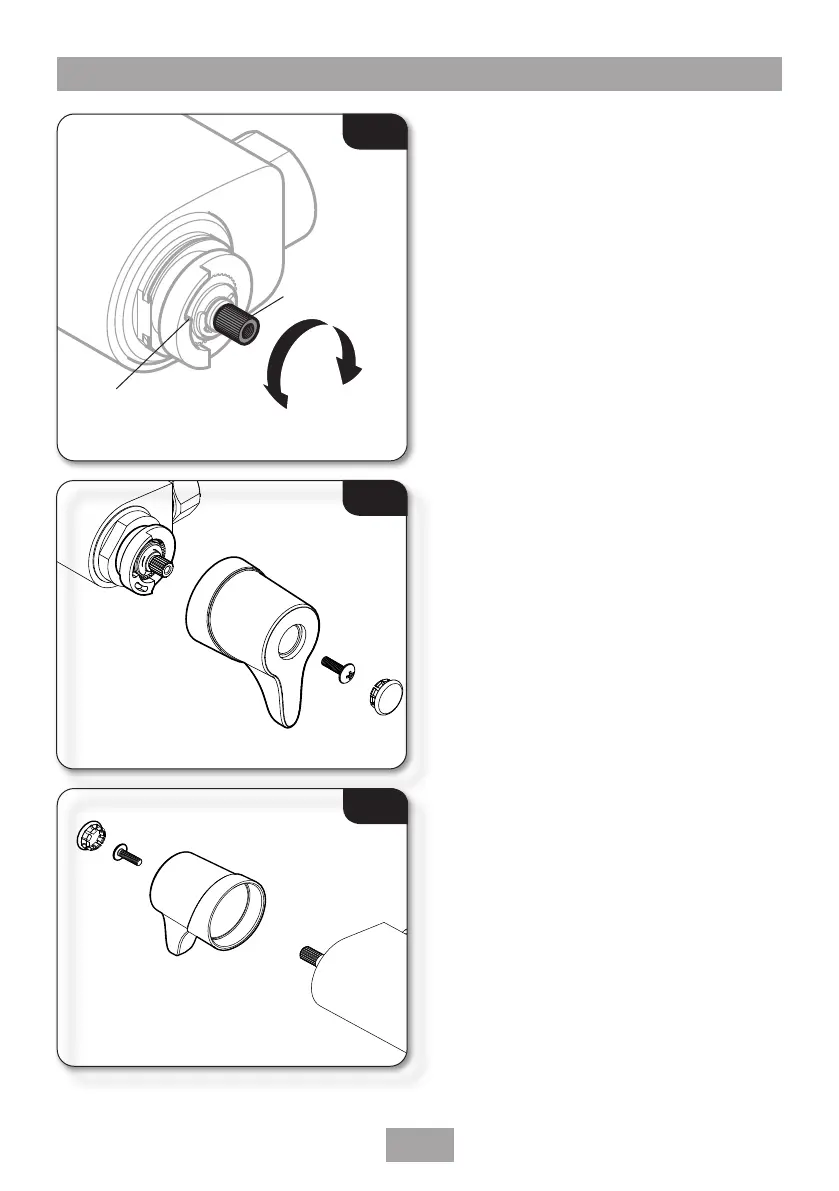

Fig.14
Temperature
spindle
Hotter
Cooler
Fig.14
Fig.15a
Fig.1b
Fig.15b
Diverter control handle
Temperature control handle
Temperature max
stop position
