Triton EDEN User Manual

Thermostatic bar mixer shower
7
INSTALLATION
PREPARING THE MIXER VALVE
Check the contents to make sure all items are
present.
Before starting, make sure all of the openings on
the valve are carefully covered to stop ingress
of any debris etc. while routing the supply
pipework.
The shower valve is suitable for exposed
installation onto:
• Solid wall
• Stud partition wall
• Dry lined wall
• Laminate cubicle or panel
SITING OF THE SHOWER & ACCESSORIES

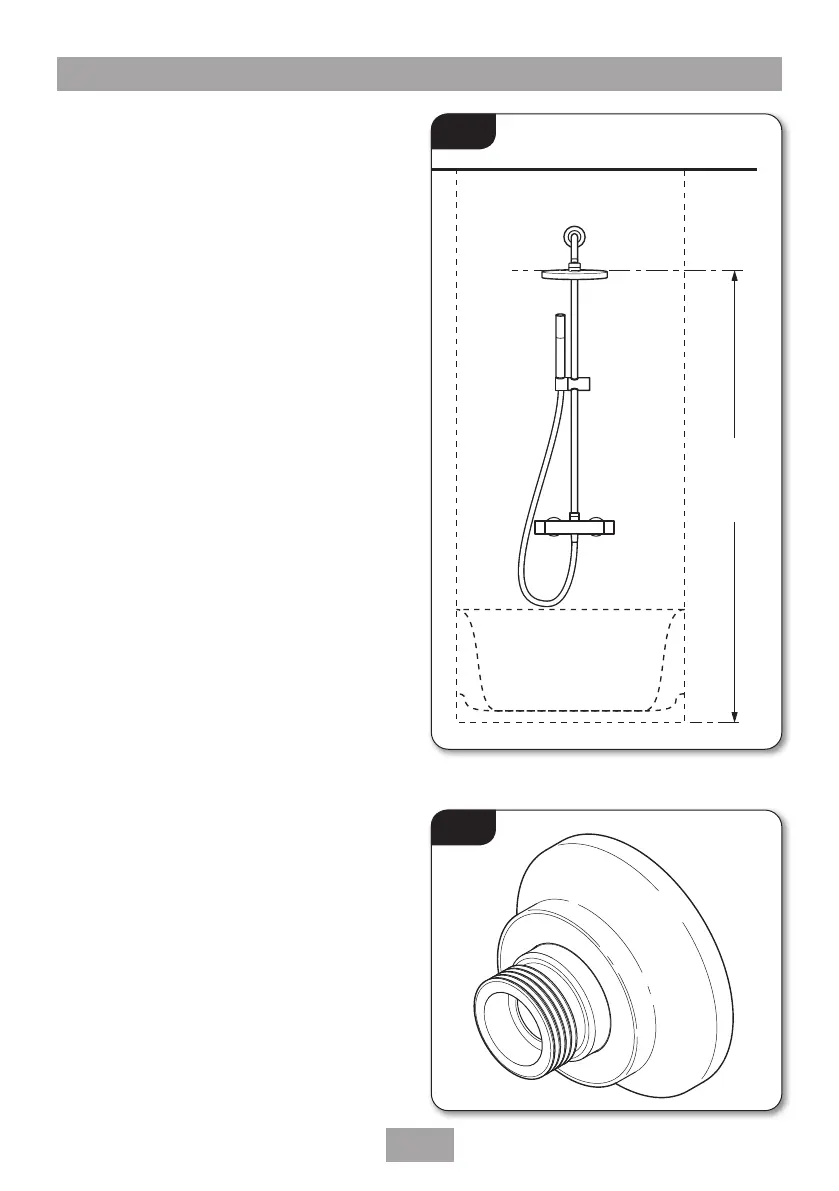

Refer to g.7 for correct siting of the shower.
The mixer valve should be positioned as detailed,
with all controls within comfortable reach of the
user.
The handset can be positioned on either side of
the riser rail pipe.
The valve must be installed in a position that
allows for easy access for future maintenance and
commissioning.
PUSH FIT BRACKET
If the product has been supplied with the push
t bracket (g.8), please follow the tting
instructions supplied with it.
Height of
showerhead
and shower
to suit user’s
requirement.
Handset can
be positioned
either side
of the rail.
*Fig.7
*(diagrammatic view – not to scale)
Fig.8
