Thermostatic shower pole
6
All dimensions in millimetres
1000
2000
INSTANTANEOUS WATER HEATERS
APPLIANCE CAPABILITIES
In order to provide the best performance from
the shower when connected to an instantaneous
water heater, the appliance must be capable of
raising the temperature of the incoming water
to a minimum of 52°C (125°F) and delivering a
flow rate of not less than eight litres per minute.
Note: If installing to a combination boiler flow
regulators (not supplied) may be required to
control the maximum flow.
PREPARING THE SHOWER POLE
Check the contents to make sure all parts are
present.
Before beginning the installation, make sure
all the openings on the mixer unit are carefully
covered to stop ingress of any debris, etc. while
routing the supply pipework.
The shower is suitable for installation on a solid
wall, a stud partition wall, a dry lined wall or
fixing to a laminate cubicle or panel.
The hot water inlet has a red symbol next to the
inlet and must be on the left-hand side.

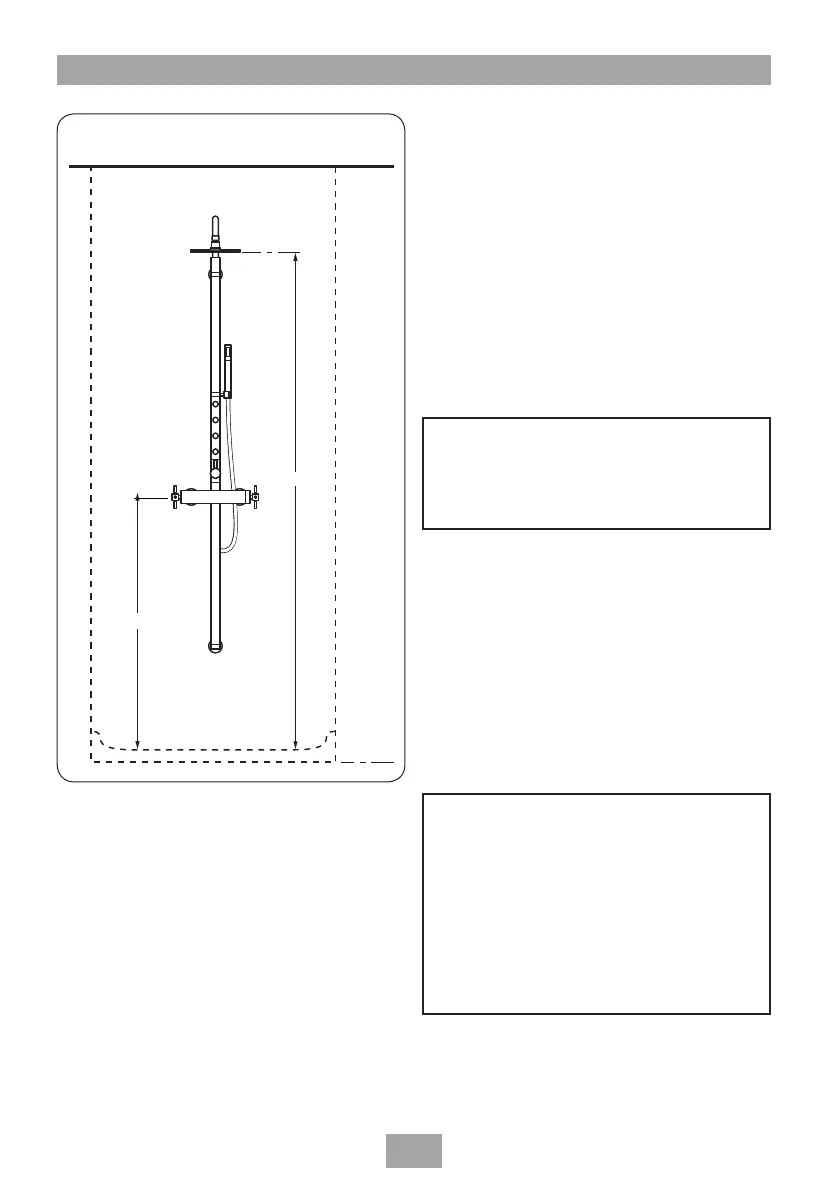

Fig.7 (diagrammatic view – not to scale)
WARNING!
The shower must not be positioned
where it will be subject to freezing
conditions.
WARNING!
Due the weight of the shower pole,
the installer MUST guarantee that the
wall and fixings are suitable and can
hold the shower pole securely.
If installing to a stud partition
wall, dry lined wall or similar, it is
recommended that the shower pole is
secured to the studs or noggins.
