PLANING

mostly hidden behind the fence faces
WARNING: NEVER make planing cuts with the
workpiece passing between the cutter and fence on the
right. The cutter will flex aside, ‘climb up’ on the work,
and rip the workpiece out of your hands - or pull your
hand into the cutter
Planing on the router fence
See Figs 25 & 26

using combinations of the 1.0 & 1.5mm planing shims
supplied

cuts

and slot the shims into the gap created, straddling each
set of screws (loosen spring tension if necessary)

shims behind the rear MDF fence face

MDF fence face and the 1.0mm shims behind the front
MDF fence face

with the rear MDF fence face (Fig 26), then begin your
cut
Planing a high face on the router fence
See figs 27a & b

the guard guide back behind the fence. The pressure
finger assemblies must also be removed from the fence

1. For 1.0 & 1.5mm cuts, insert the appropriate shims
behind the rear MDF fence face
2. Lock the fence with the rear face aligned with the
cutter
3. Remove the shims and, without re-adjusting the fence,
complete the first pass (Fig 27a)
4. Re-fit the shims behind the rear MDF fence face, then
flip the workpiece and complete the second pass
(Fig 27b)

0.5mm shims behind the rear MDF fence face

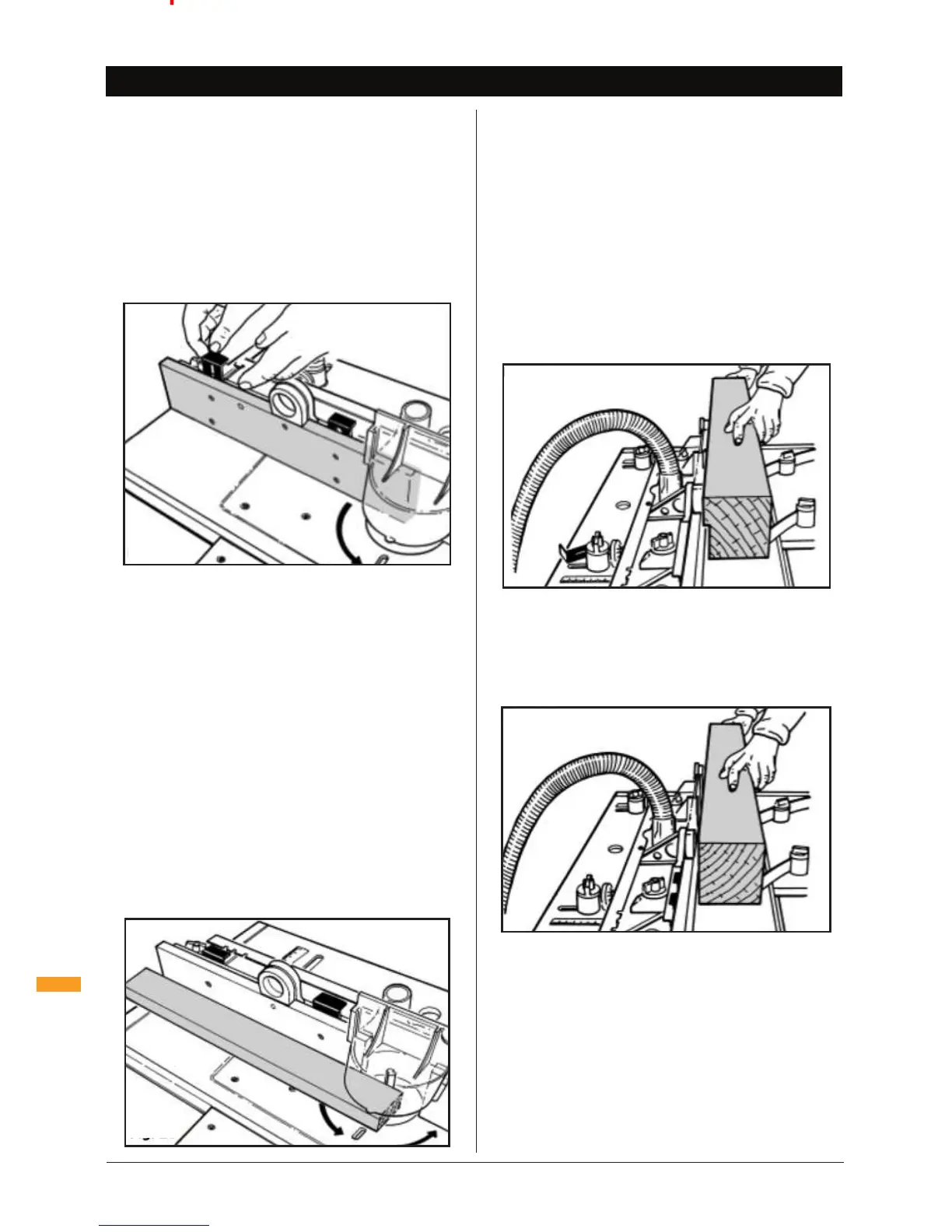

Fig.25
Fig.26
Fig.27a
Fig.27b
Planing
