T150Z pumped thermostatic electric shower
A. Bottom Entry
B. Top Entry
C. Rear Entry
Important: Under No circumstances
must the Inlet be rotated 90
0
and the
pipe fitted directly. The shower has not
been designed for this method of
connection. See below.
The Inlet fitting is designed to rotate through
180
o
to allow for either Top or Bottom/Rear entry
fitting (fig.11).
Note: The inlet fitting is designed to enter a
compression fitting only. DO NOT use push
fit connectors as full engagement cannot be
guaranteed. DO NOT use excessive force when
making these connections.
Make sure the backplate is square on the wall
and tighten the retaining screws which hold it to
the wall.
Turn on the water supply and check for leaks in
the pipework connection to the shower.
Note: At this stage no water can flow through
the unit.
Important: Using a suitable sealant, always
seal around the incoming pipework to prevent
water entering the wall.
WARNING!
The outlet of the shower acts as
a vent and must not be connected
to anything other than the hose
and showerhead supplied.

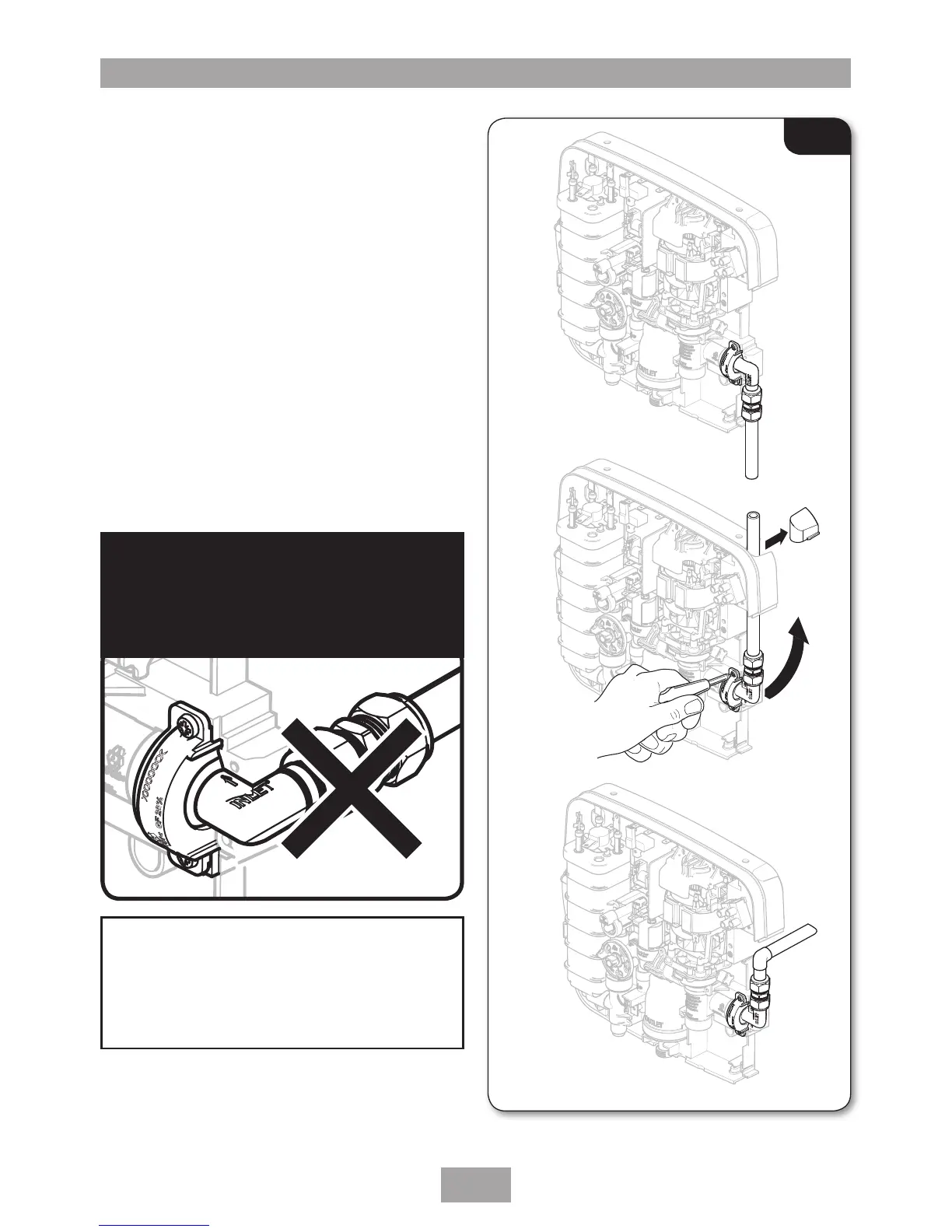

Fig.11
