T150Z pumped thermostatic electric shower
Ref. Description Part No.
1. Top and bottom pipe entry trim ................................. 83313430
2. Thermal safety cut-out ................................................ 22012020
3. Power printed circuit board ........................................ 7073709
4.
Can and element assembly
8.5Kw .......................... P19520700
9.5Kw .......................... P19520703
5.
Flow switch assembly ................................................. S19521007
6.
Temperature Control assembly ................................... S19520805
7.
Terminal block and wires ............................................ S23410901
8.
Solenoid valve assembly ............................................. P23410801
9.
Water inlet assembly ................................................... P23411001
10. Pressure relief device (PRD) ......................................... 82800450
11. Shower outlet reservoir ............................................... P23410802
12. Access trimplate ......................................................... 7053949
13. Heater inlet valve assembly
8.5Kw .......................... S19520806
9.5Kw .......................... S19520808
14. Motor and pump assembly ......................................... P15211002
15. Inlet filter assembly ..................................................... P23410804

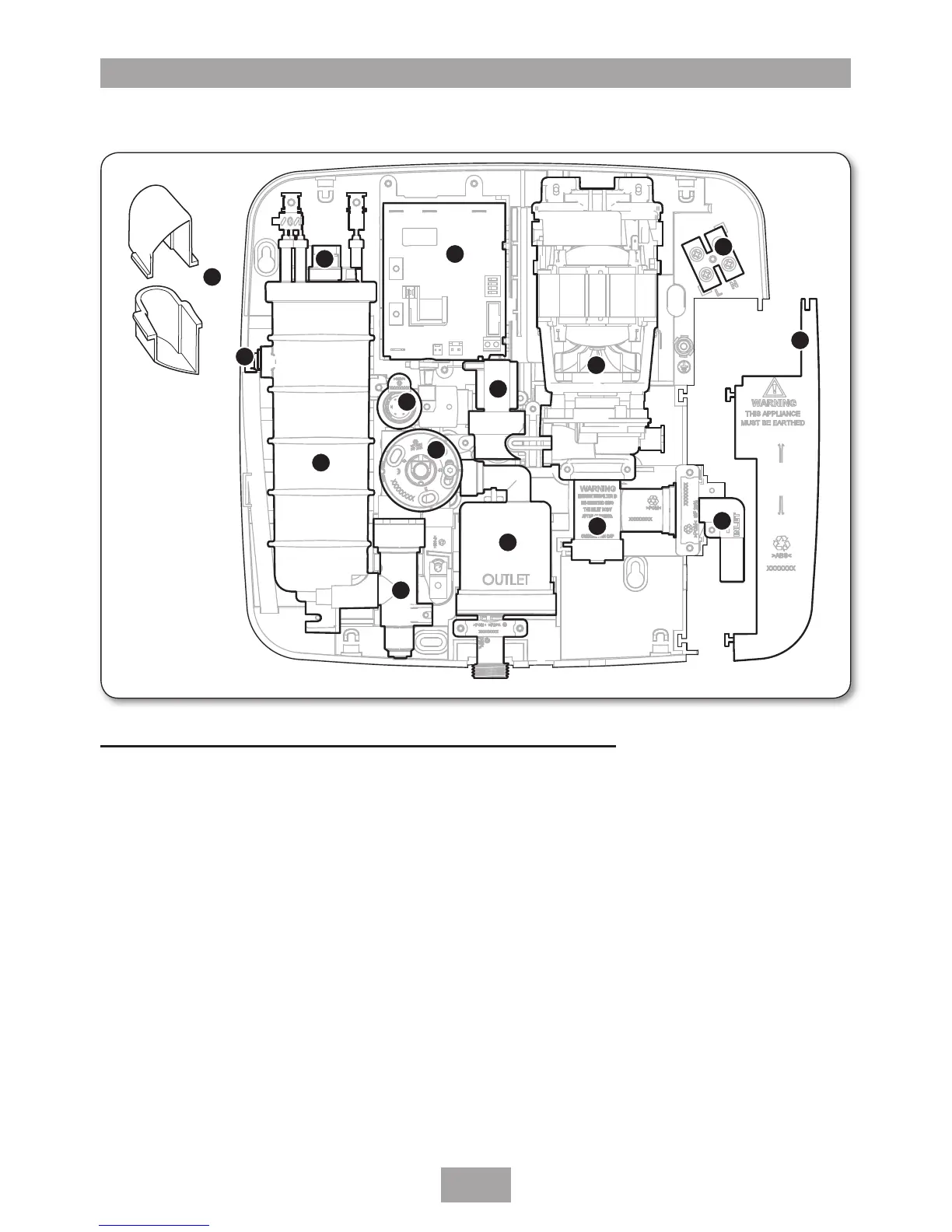

SPARE PARTS
2
3
4
9
7
11
14
5
6
8
10
13
1
12
15
