Triton t150z User Manual

13
T150Z pumped thermostatic electric shower

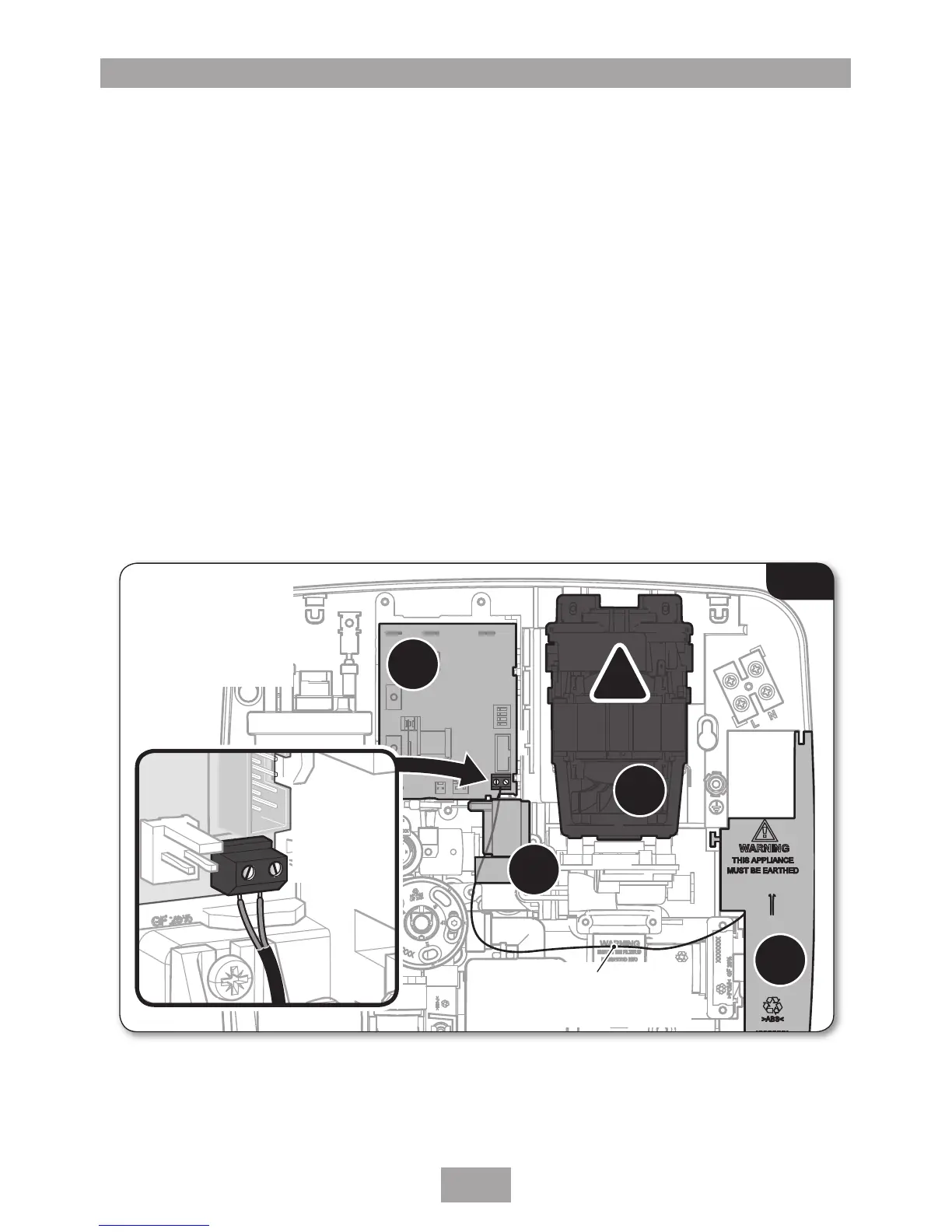

Pump
wire
terminal
block
Control wire to connect
the shower to the pump
transformer module.
A
D
B
C
A. Pump Motor
B. PCB
C. Solenoid Valve
D. Trimplate
DANGER!
Rotating Parts
!
Warning! DO NOT route the Control wire near to (A) the Pump Motor
SHOWER DRAIN PUMPS
Principals of operation
When the shower is turned on, an internal sensor
sends a signal to the transformer to supply DC
voltage to the pump.
When the shower is turned off, a signal is sent
to the transformer and after a preset time delay
stops the supply of DC voltage to the pump.
(Please refer to the relevant Pump manufacturers
installation instructions for full details of operation).
WARNING! The pump is a non-gravity
installation. It is advised that where
the property is left unattended for an
extended period of time, that the water
supply to the shower is shut off.
CONNECTING THE CONTROL WIRE
The showers internal Pump Control Wire
electrical connector is shown in (fig.14).
Note: Numbers 1 and 2 only cover
connecting the outgoing wire within the
shower - Please refer to the relevant Pump
manufacturers installation instructions
for Pump connection and relevant IEE
regulations that must be met.
1. Connect the Control Wire from the pump to
the shower via the terminal block situated at
the bottom of the showers PCB.
2. The Control Wire MUST be routed behind B
and out through D.
The wire MUST NOT be routed near to A.
Fig.14
Pumps are not supplied with any products manufactured by Triton Showers (see page 14 for compatible pumps).
