3
T150Z pumped thermostatic electric shower
This product is rated at:
30 minutes on / 30 minutes off.
Note: Wires have not been shown for reasons of clarity.
1
2
16
17
3
18
15
4
5
6
12
9
14
10
7
8
11
13

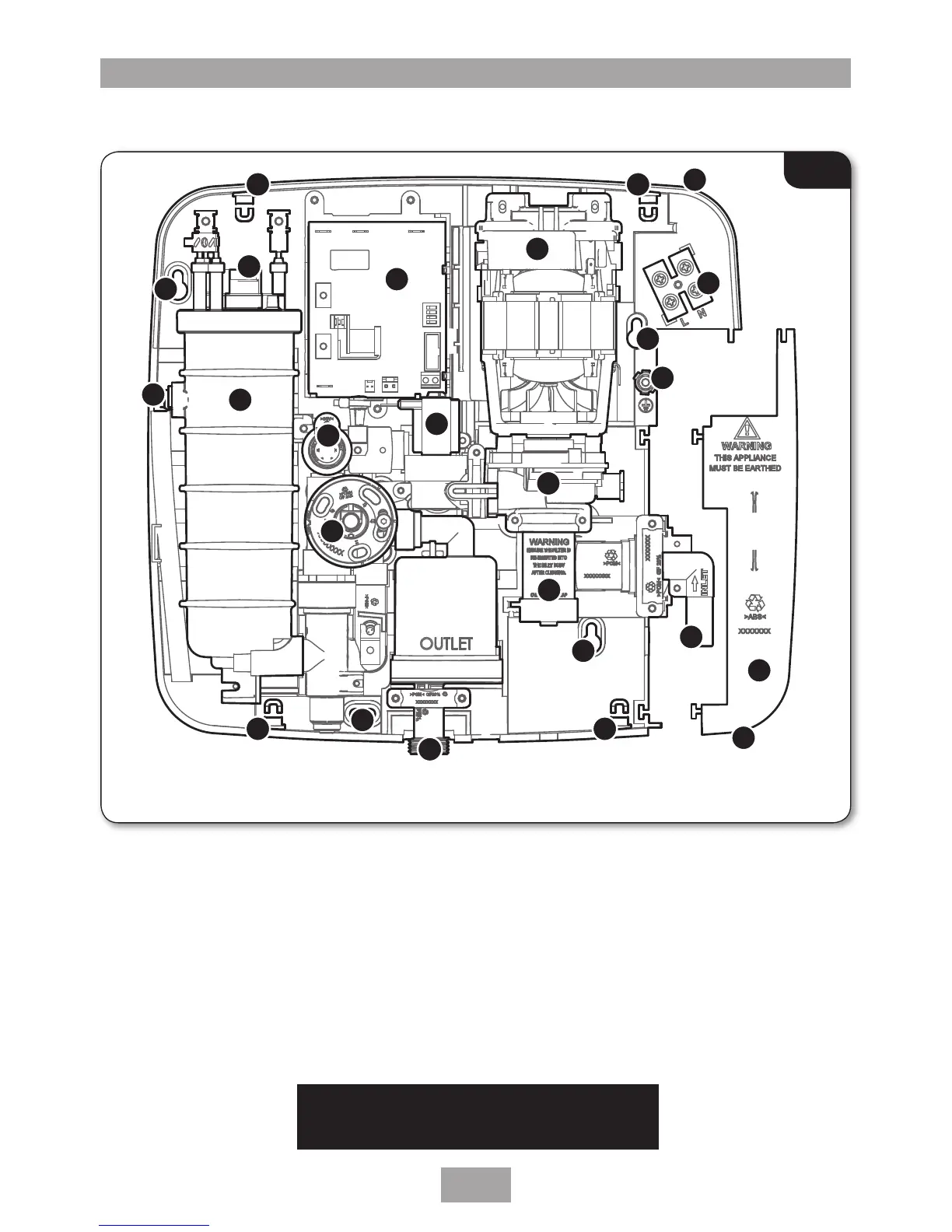

Inside unit (fig.1)
1. Top cable/pipe entry
2. Wall screw fixings
3. Cover screw fixings
4. Thermal safety cut-out
5. Power printed circuit board
6. Can and element assembly
7. Flow switch assembly
8. Temperature Control
9. Terminal block
10. Earth connection
11. Solenoid valve
12. Water inlet
13. Pressure relief device
(PRD)
14. Shower outlet
15. Filter
16. Pump motor
17. Pump
18. Trimplate
19. Bottom cable/pipe entry
MAIN COMPONENTS
2
2
2
3 3
3
19
Fig.1
