DIP SWITCH SETTINGS

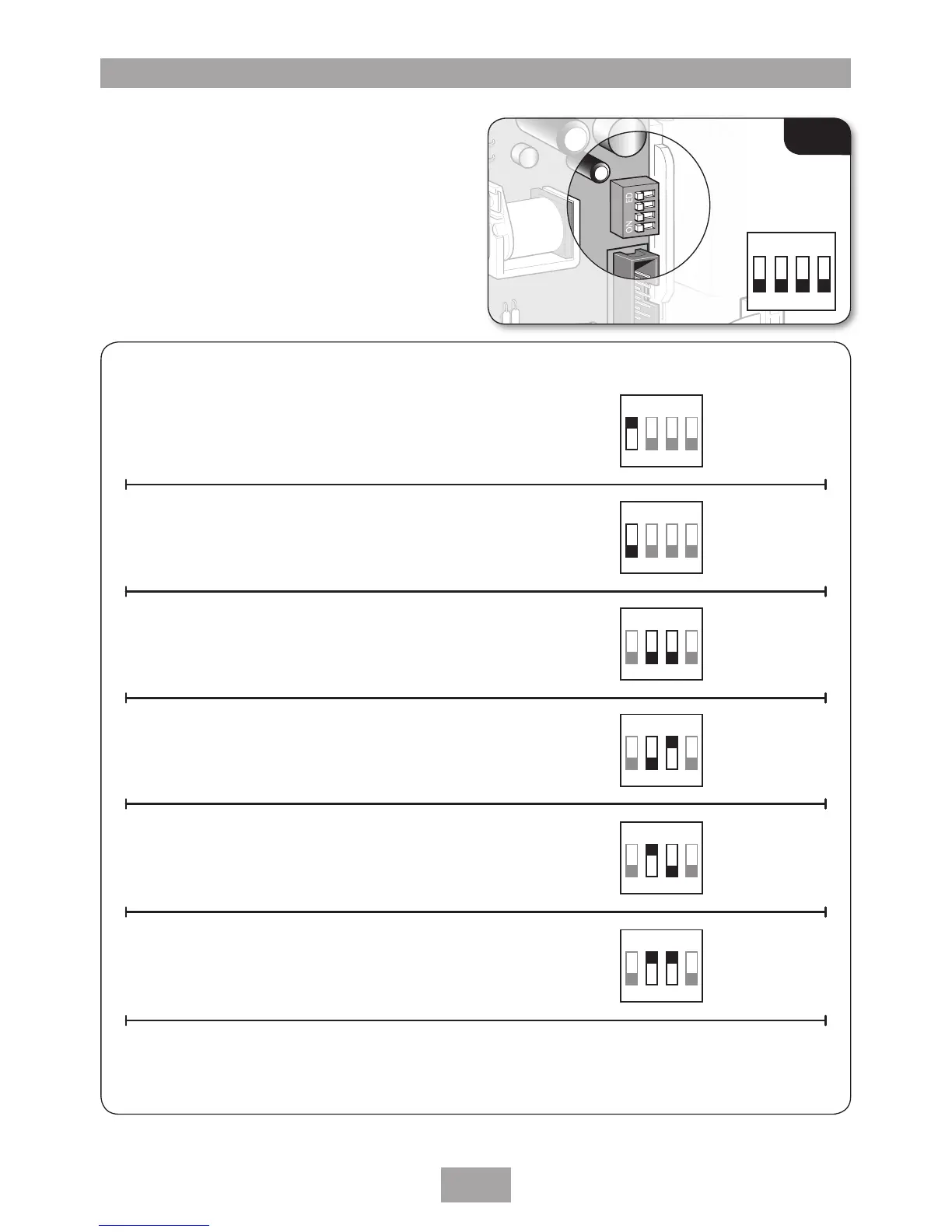

A four way DIP switch block is mounted on the
control PCB that allows the user to configure the
shower to perform different functions (fig.19).
ON ED
1 2 3 4
Dip Switch No. Operation Enabled Switch Position
DIP switch 1 On Audible Feedback On
DIP switch 1 Off
Audible Feedback Off
DIP switch 2 Off
Timed Shutdown - 5 Mins
DIP switch 3 Off
DIP switch 2 Off
Timed Shutdown - 10 Mins
DIP switch 3 On
DIP switch 2 On Timed Shutdown - 20 Mins
DIP switch 3 Off
DIP switch 2 On
Timed Shutdown - 30 Mins
DIP switch 3 On
DIP switch 4 Spare
ON ED
1 2 3 4
ON ED
1 2 3 4
ON ED
1 2 3 4
ON ED
1 2 3 4
ON ED
1 2 3 4
ON ED
1 2 3 4
(Factory setting)
(Factory setting)
Off
On
5 Mins
10 Mins
20 Mins
30 Mins
Fig.19
