Triton T30i User Manual

T30i
3
Pack contents
Handwash unit
200mm swivel arm
Instructions, guarantee, etc.

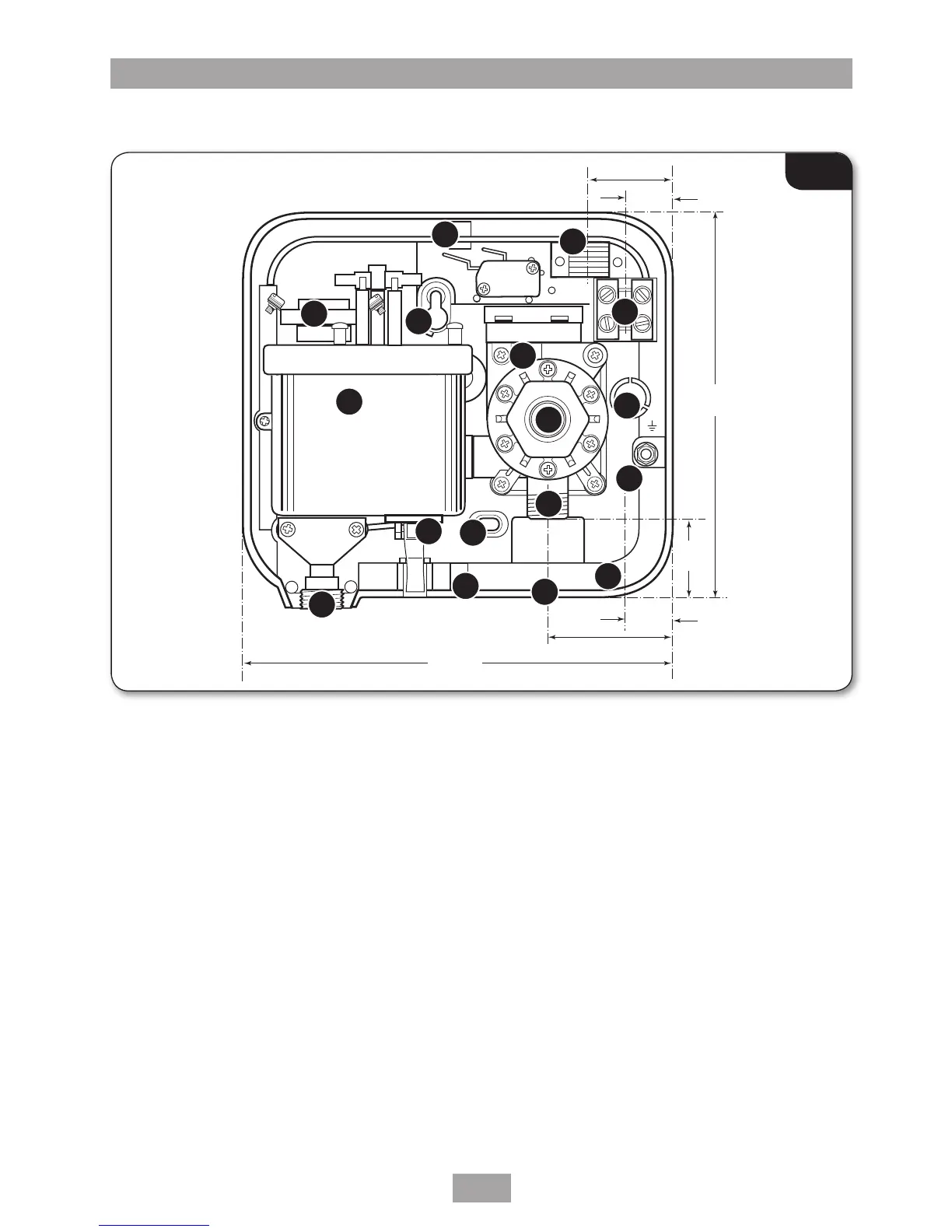

Inside unit – fig.1
1.
Top cable entry
2. Bottom cable entry
3. Rear cable entry
4. Water inlet
5. Pipe entry
6. Cover screw fixing
7. Earth connection
8. Terminal block
9. Outlet pipe
10. Pressure switch
11. Stabilising valve
12. Can and element assembly
13. Thermal cut-out
14. Pressure relief device (PRD)
15. Wall screw fixings
38 mm
56 mm
23
mm
173
mm
22
mm
31
mm
200 mm
NOTE: Not all wiring shown for reasons of clarity
Fig.1
KEY TO MAIN COMPONENTS
1
3
7
5
9
4
11
10
14
8
6
12
13
15
2
6
15

Triton T30i Specifications

General

Power Rating	3kW
Installation Type	Wall mounted
Water Connection	15mm compression
Energy Efficiency Class	A
Voltage	230V
Frequency	50Hz
Protection	IPX4
Water Pressure	0.7 bar to 10 bar
