INSTALLATION - FITTING THE SHOWER TO THE WALL
Pipe access points
The shower cover has been designed with four
‘cut out’ bottom pipe access points and the
backplate has been designed with one ‘cut
out’ top rear - (fig.10) shows the top access
backplate position and the bottom cover ‘cut
out’ positions.
• Decide if top or bottom pipe entry is
required.
• Once chosen, carefully remove the
appropriate ‘cut out’ using a junior
hacksaw and file.
PLEASE NOTE: NONE of the ‘cut outs’ are
designed as ‘snap out’ entry points.
DO NOT remove using pliers. The use of pliers
could damage the cover or backplate and may
invalidate product specifications and warranty.

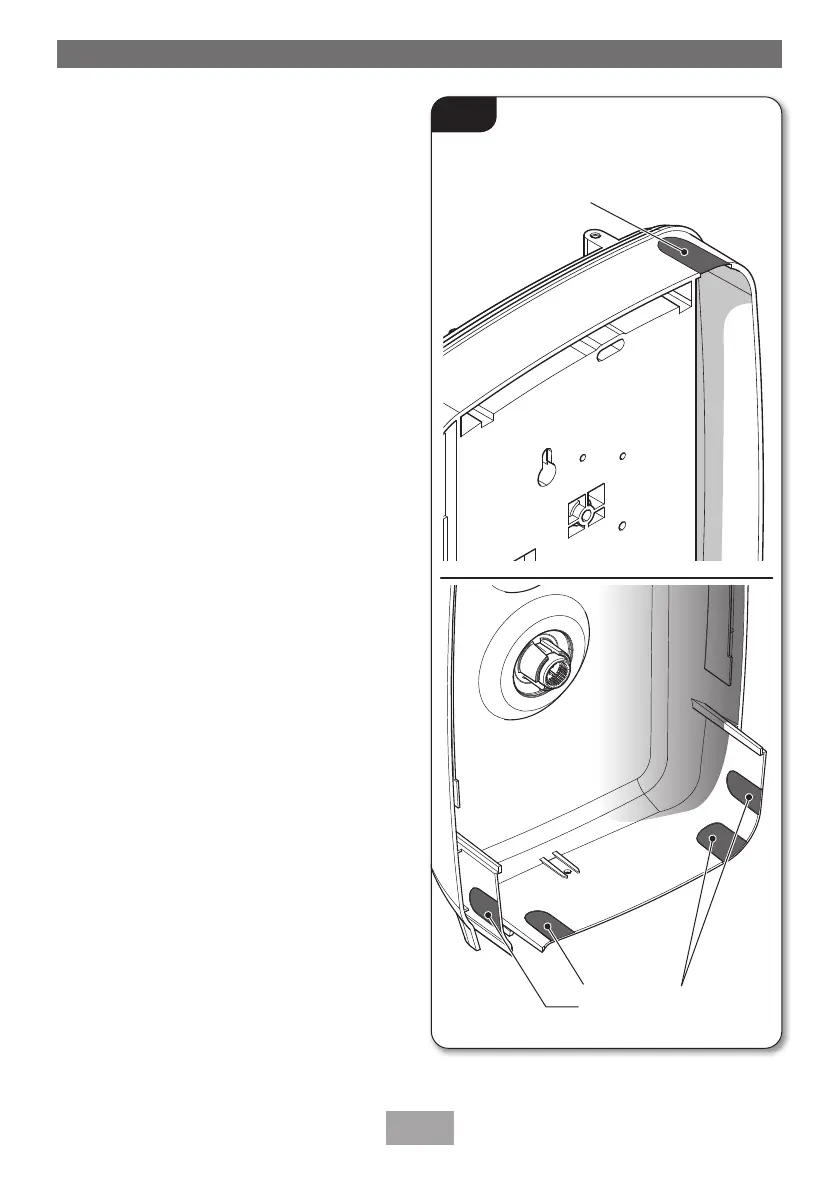

Fig.10
Left hand side
top rear of the
backplate
‘Cut out’ bottom cover
pipe access points
‘Cut out’ rear backplate
pipe access point
