18
FITTING THE COVER
3. With the cover off the
shower turn the power
selector to the OFF
position (fig.17).
1. With the cover off the
shower turn the POWER
selector spindle clockwise
until the flat section is on
the bottom (fig.15).
2. With the cover off the
shower turn the stabiliser
valve spindle fully clockwise
until resistance is felt
(fig.16).
4. With the cover off
the shower turn the
temperature control to
the 5 O’clock position as
shown in (fig.18).
Fig.15
Fig.16
Fig.17
Fig.18
Flat section
to the bottom
Stabiliser
valve
FITTING THE COVER

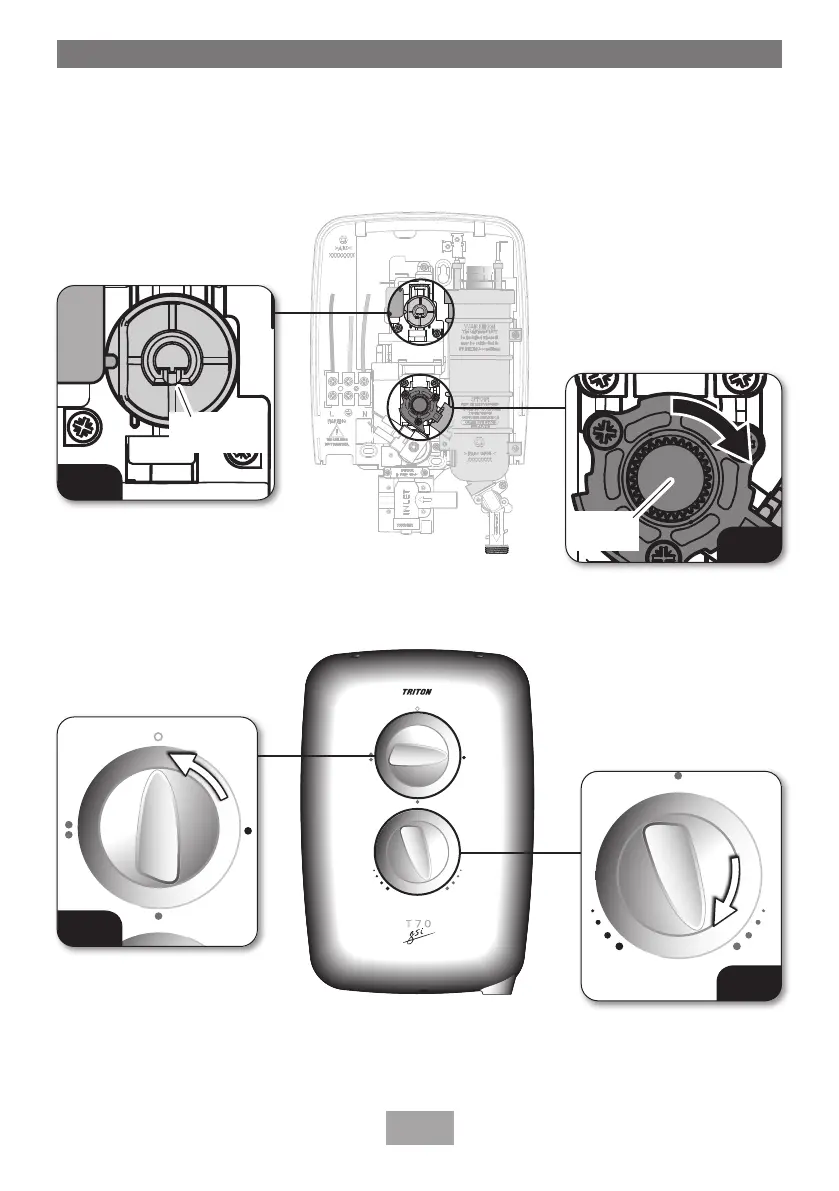

Figs 15, 16, 17 and 18 show the correct control knob position when replacing the cover.
