The shower cover has been designed with four
“cut out” bottom pipe access points and the
backplate has been designed with one “cut
out” top rear - (fig.9) shows the top access
backplate position and the bottom cover “cut
out” positions.
• Decide if top or bottom pipe entry is
required.
• Once chosen, carefully remove the
appropriate “cut out” using a junior
hacksaw and file.
7
Continued
SECTION
PLEASE NOTE: NONE of the 'cut outs'
are designed to 'snap out'. ONLY a junior
hacksaw, file or suitable knife should be used.
Damage to the backplate or lower trimplate
may invalidate product specifications
and warranty.

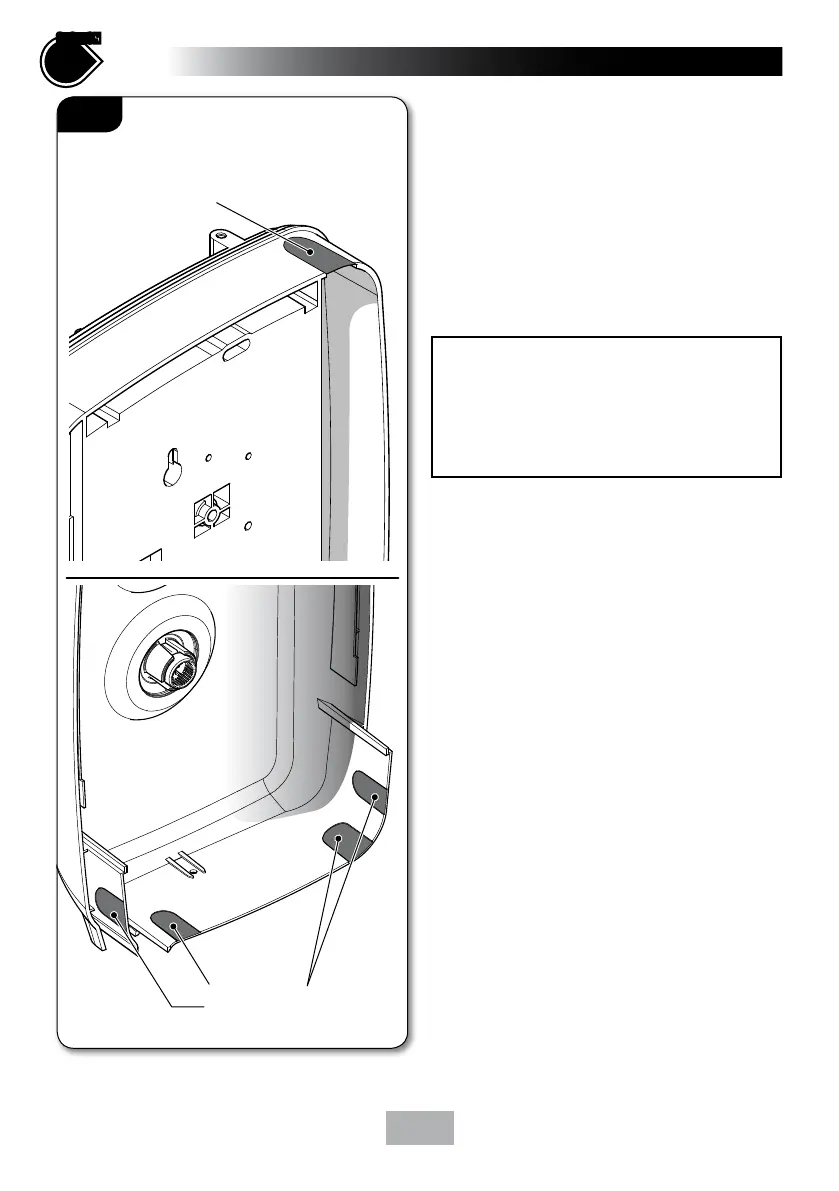

Fig.9
Left hand side
top rear of the
backplate
"Cut out" bottom cover
pipe access points
"Cut out" rear backplate
pipe access point
To Next Page
