Dual control built-in thermostatic mixer shower
NOTE: The outlet pipework must end in a
suitable female thread parallel 15mm x ½”
BSP tting (not supplied).
Offer the valve body up to the wall and mark the
xing holes. Remove the valve, drill and plug the
wall. Route the pipework to valve body position.
Installation in a Hollow Wall
Decide on the shower position and determine
whether the hot and cold water supplies will
enter the shower from the top (falling) or bottom
(rising) or rear (g.10).
When installing into a stud partition or other
hollow wall structures, the installer will need
to consider fabricating rear supports or other
options. Such options are beyond the scope of
this guide.
Mark the route of the incoming and outgoing
pipework.
Take out the plasterboard (use the cover plate
as a template). Offer the valve body up to the
fabrication and mark the xing holes.
Remove the valve and drill the holes. Route the
pipework to the valve position.
Installation in a Panel Wall or Cubicle
When installing into a panel or cubicle structure
the installer will need to consider fabricating
rear supports or other options. Such options are
beyond the scope of this guide.
Typically, there should be at least 65mm space
from the surface of the panel to the rear of the
valve body.
IMPORTANT: Access to the rear of the valve
must be available.
The controls require two holes to be cut out
of the panel or cubicle. Use the face plate as a
template to mark the hole positions then extend
further to allow access for the lters.
Route the pipework to valve position.

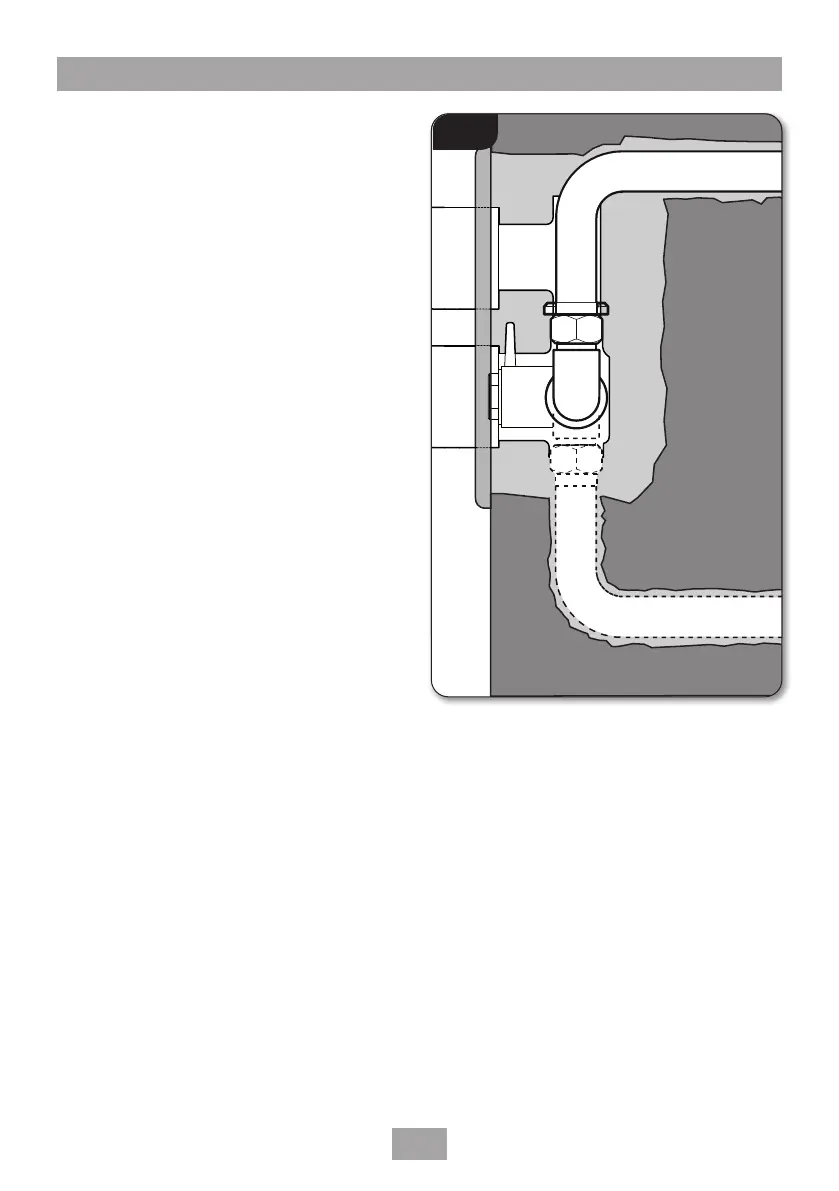

Fig.10
