15
Dual control built-in thermostatic mixer shower
The mixer has a temperature stop to prevent
accidental rotation to higher temperatures. This
is adjustable to provide a maximum temperature
of 35°C – 40°C and should be checked on site to
guarantee user safety.
Temperature Adjustment Range
The mixed water temperature can be adjusted
from cold through to a top limit (which can
be pre-set during installation – factory set
at approximately 38°C) with full anti-scald
protection throughout the range.
ADJUSTING THE MAXIMUM
TEMPERATURE SETTING
(and tting the knobs)
Control Knob Assembly
There are two knobs supplied, an on/off ow
control knob and a temperature control knob.
The knobs must be tted in the correct order,
failure to do so will cause incorrect operation of
the shower. The temperature control knob has a
metal stop pin on the inside.
Fit the on/off ow knob onto the correct spindle
(fig.16). Insert the O-ring seal into the recess on
the back of the threaded trim ring and screw the
threaded trim ring onto the flow control spindle
until it engages into the face plate opening. Fit
the flow control knob onto the spindle with the
lever hole in the 12 o’clock position. Secure to
the spindle using the grub screw and screw the
lever into the control.
NOTE: Lever should rotate between ON
and OFF indications on the face plate.
Turn the ow control fully anti-clockwise. With
a steady ow running, adjust the temperature
spindle until the temperature is about 38°C (turn
clockwise for hotter or anti-clockwise for cooler).
When the showering temperature is satisfactory
turn off the shower.

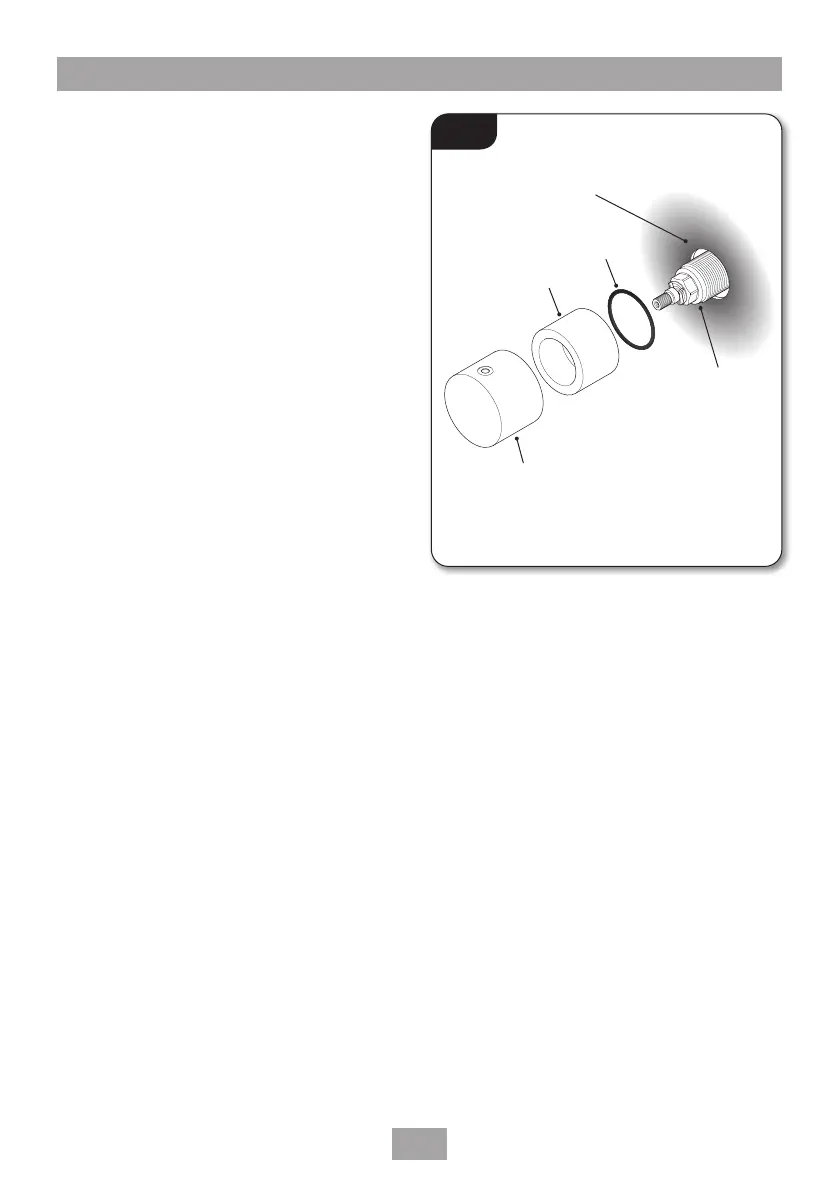

Flow
control
‘O’ ring
Face plate surface
Trim ring
On/O - ow knob
Fig.16
