9
Dual control built-in thermostatic mixer shower
INSTALLATION
Preparing the Shower
Check the contents to make sure all parts are
present.
Before starting the installation, make sure all the
openings on the valve are carefully covered to
stop ingress of any debris, etc. while routing the
supply pipework.
The shower valve is suitable for built-in
installation in:
• a solid wall,
• a stud partition wall,
• dry lined wall,
• or xing to a shower cubicle or panel.
Siting of the Shower and Accessories
Refer to g.7 for correct siting of the shower.
The shower should be positioned as detailed,
with all controls within comfortable reached of
the user.
The accessories (shower head, riser rail and/or
xed shower head) can be positioned above or
to either side of the shower, refer to g.7.
Supply Pipework
Complete the pipework to the shower area
having decided on the position of the shower
and direction of pipe entry for example rising,
falling or rear entry.
The hot and cold water pipes should not
be permanently attached to the wall within
one metre of the valve, before installation is
complete, to allow for nal adjustment of the
valve position.
Rear Entry Supplies
Using a spirit level, mark the route of incoming
hot and cold water supply pipes.
NOTE: The distance between centres will be
determined by the ttings used (g.8).
250mm approx.
Example Channel for
Incoming pipework (rising)
shown. The distance will
depend on the fittings used.
Channel for outlet
pipe to fixed head or
bulkhead fitting
Recess at least
60mm deep
Recess for valve
body at least
65mm deep
Height of
shower head
and shower
to suit user’s
requirement.
Shower can be
mounted either side
of the shower head.

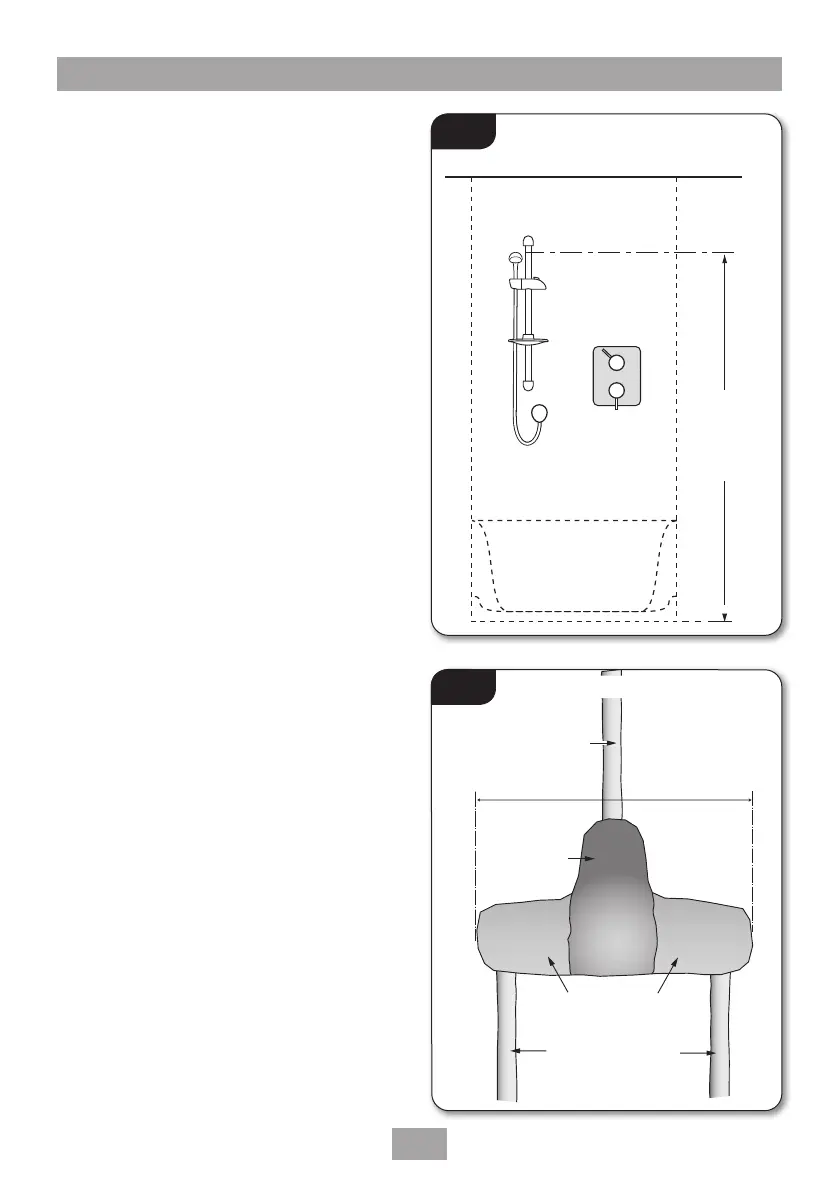

*Fig.7
Fig.8
Typical building-in dimensions
*Diagrammatic view – not to scale.
For illustration purposes only.
