Zanté electric shower
3
255
mm
300
mm
208 mm
58 mm

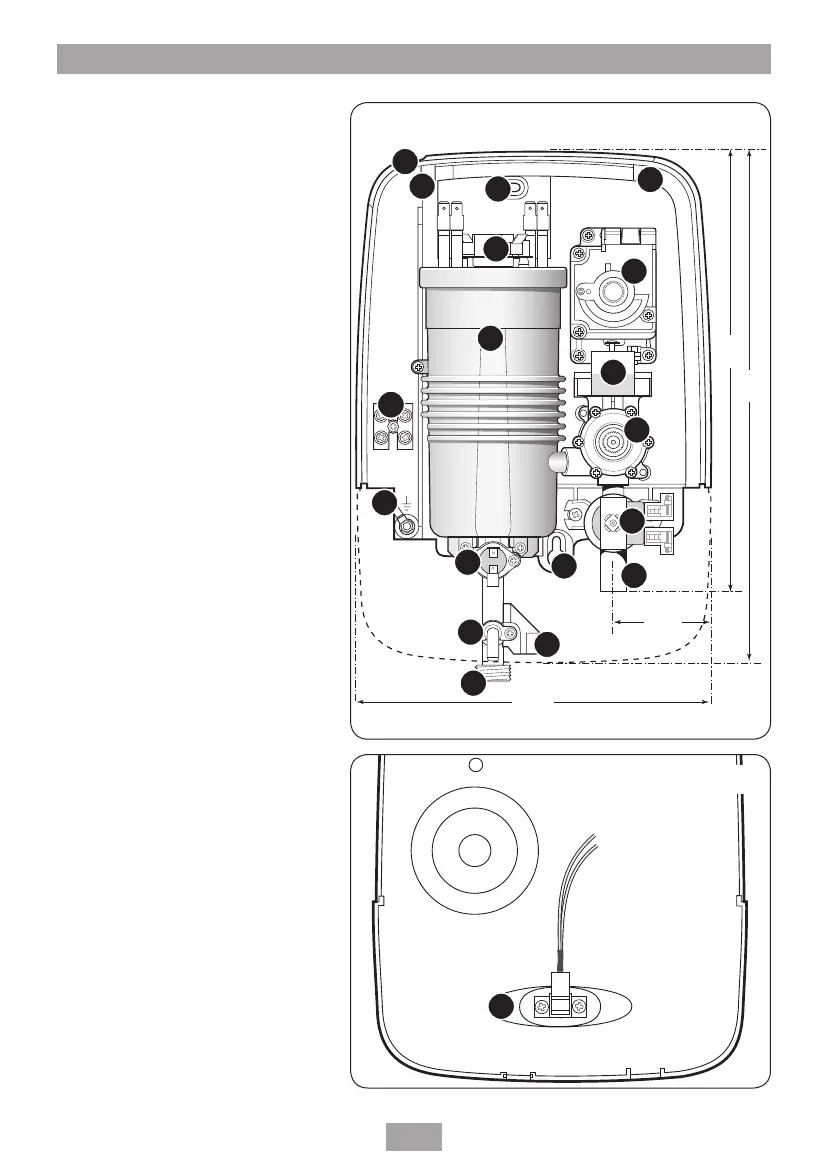

Fig.1
KEY TO MAIN COMPONENTS
Inside unit (fig.1)
1. Top cable/pipe entry
2. Wall screw fixings
3. Cover screw fixings
4. Thermal safety cut-out
5. Power selector assembly
6. Can and element assembly
7. Pressure switch/flag assembly
8. Stabilising valve
9. Terminal block
10. Earth connection
11. Solenoid valve
12. Water inlet
13. Thermal cut-out (outlet)
14. Pressure relief device (PRD)
15. Shower outlet
Inside cover (fig.2)
16. Stop/start switch
Pack contents
Shower unit
Showerhead
Riser rail kit and fittings
Soap dish
Flexible hose
Screw fixing kit
Instructions, guarantee, etc.
Fig.2
NOTE: Not all wiring shown for reasons of clarity
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
