Triumph Rocket III Handbook

13
Parts Identification

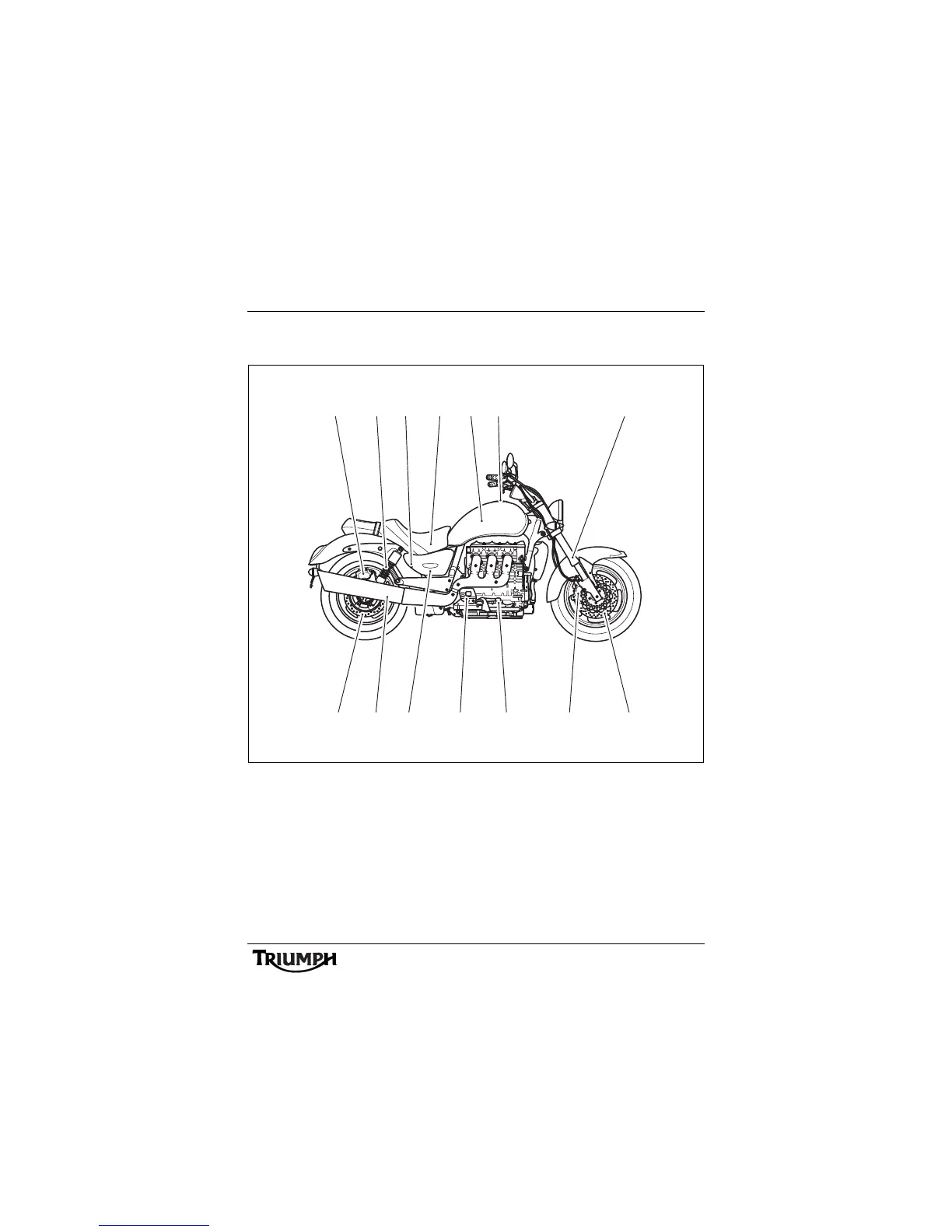

PARTS IDENTIFICATION
15.Rear brake caliper
16.Rear suspension unit
17. S e a t l o c k
18.Battery (beneath seat)
19 . F u e l t a n k
20.Fuel filler cap
21. Front fork
22.Front brake disc
23.Front brake caliper
24.Rear brake pedal
25.Rear brake fluid reservoir
26.Engine management ECM (beneath
right hand side panel)
27. Silencer
28.Rear brake disc
15 16 17 18 19 20 21
28 27 26 25 24 23 22

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
