Triumph Tiger 900 GT User Manual

MAINTENANCE
182

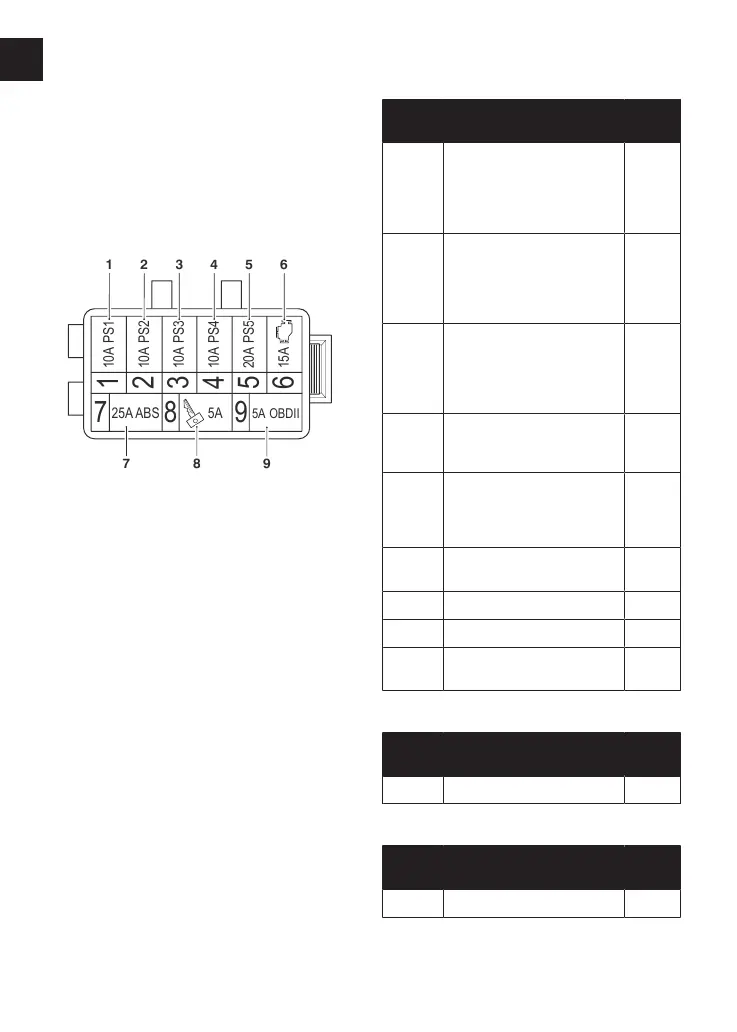

Fuse Identification
Tiger 900 GT Pro
The fuse identification numbers listed in
the table correspond with those printed
on the fuse box covers, as shown below.
Fuse Box 1
7
5A
10A 10A 10A 10A 20A 15A
25A ABS
5A OBDII
PS1 PS2 PS3 PS4 PS5
8 9
6 5 4 3 2 1
1
2 3
7
8 9
6
5
4
Position Circuit Protected
Rating
(Amps)
1
Chassis Control Unit,
Cooling Fan (Right Hand
Side), Horn, Fog Lights,
License Plate Light, Rear
Position Light
10
2
Chassis Control Unit, Brake
Light, Dip Beam Headlight,
Front Position/DRL Control,
Instrument Wake, Front
Turn Signals, Heated Grips
10
3
Chassis Control Unit,
Heated Seats, High Beam
Headlight, Rear Turn
Signals, USB Charger, Front
Position/DRL Power
10
4
Chassis Control Unit,
Passenger Accessory
Socket
10
5
Chassis Control Unit,
Cooling Fan (Left Hand Side),
Starter Motor Solenoid, Fuel
Pump
20
6
Engine Management
System
15
7 ABS 25
8 Ignition Switch 5
9
Diagnostics Connector
(OBDII), Alarm
5
Fuse Box 2
Position Circuit Protected
Rating
(Amps)
1 Rider Accessory Socket 10
Fuse Box 3
Position Circuit Protected
Rating
(Amps)
1 Suspension Control 15

Triumph Tiger 900 GT Specifications

General

Displacement	888 cc
Power	93.9 HP (70 kW) @ 8, 750 rpm
Torque	87 Nm @ 7, 250 rpm
Transmission	6-speed
Seat Height	810-830 mm (adjustable)
Tires (Front)	100/90-19
Tires (Rear)	150/70 R17
Engine Type	Liquid-cooled, 12 valve, inline 3-cylinder
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial monobloc calipers
Rear Brakes	Single 255mm disc, Brembo single piston sliding caliper
Fuel Capacity	20 L
Frame	Tubular steel frame
ABS	Switchable ABS
Traction Control	Switchable traction control
Riding Modes	Road, Rain, Sport
Rear Suspension	Monoshock, adjustable preload and rebound damping
Weight (Wet)	210 kg (463 lbs)
Instrumentation	TFT color display
