Triumph Tiger 900 GT User Manual

GENERAL INFORMATION
50
Warning Message when Ignition Switch
is Turned ON
To view the warning messages in styles
01, 02 and 03, push the joystick left/
right. To view the information trays in
styles 04, push the joystick down/up.
If a warning message has been
acknowledged but not rectified, the
message will appear again when the
ignition switch is turned to the ON
position.
The arrow to access to the information
trays are inactive and it is not possible
to change the information tray until the
warning message has been
acknowledged or rectified.
If more than one message is displayed
then the left/right arrow becomes
active, push the joystick left/right to
show other messages.
N
0 0
2 2
4 4
6 6
8 8
10 10
12 12
00
SENSOR SIGNAL REAR TYRE
F E C H
21.5 10:55
AM
C
o
x1000rpm
Check Manual
SET 100
9
ABS
+
MPH
WARNING

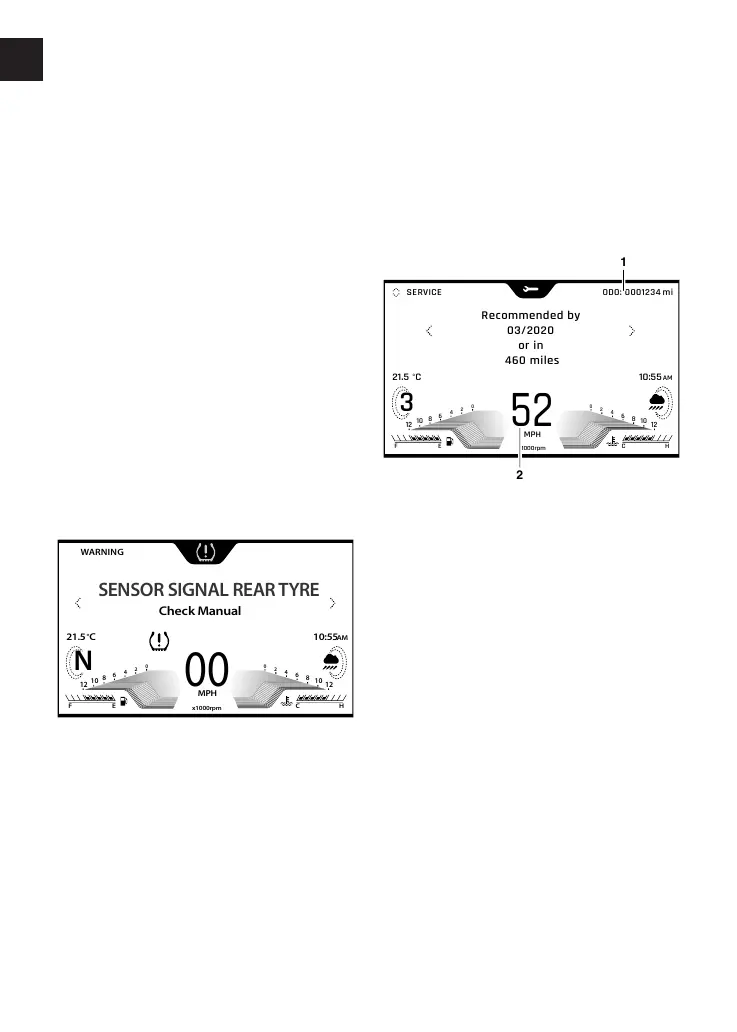

Sensor Signal Warning Shown
Odometer and Speedometer
The odometer shows the total distance
that the motorcycle has traveled. The
odometer is only shown in the Service
information tray.
The speedometer indicates the road
speed of the motorcycle.
3
0 0
2 2
4 4
6 6
8 8
10 10
12 12
52
F E C H
21.5 10:55
AM
C
o
x1000rpm
SET 100
9
ABS
+
MPH
SERVICE
Recommended by
03/2020
or in
460 miles
ODO: 0001234 mi
1
2
1. Odometer
2. Speedometer

Triumph Tiger 900 GT Specifications

General

Displacement	888 cc
Power	93.9 HP (70 kW) @ 8, 750 rpm
Torque	87 Nm @ 7, 250 rpm
Transmission	6-speed
Seat Height	810-830 mm (adjustable)
Tires (Front)	100/90-19
Tires (Rear)	150/70 R17
Engine Type	Liquid-cooled, 12 valve, inline 3-cylinder
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial monobloc calipers
Rear Brakes	Single 255mm disc, Brembo single piston sliding caliper
Fuel Capacity	20 L
Frame	Tubular steel frame
ABS	Switchable ABS
Traction Control	Switchable traction control
Riding Modes	Road, Rain, Sport
Rear Suspension	Monoshock, adjustable preload and rebound damping
Weight (Wet)	210 kg (463 lbs)
Instrumentation	TFT color display
