Triumph Tiger 900 GT User Manual

GENERAL INFORMATION
35
Rider Heated Seat Switch (if
equipped)
The rider heated seat will only heat
when the engine is running. When the
heated seat is switched on the heated
seats symbols will appear in the
instrument display. The selected heat
level will also be indicated by the color
of the symbol. For more information, see
page100.

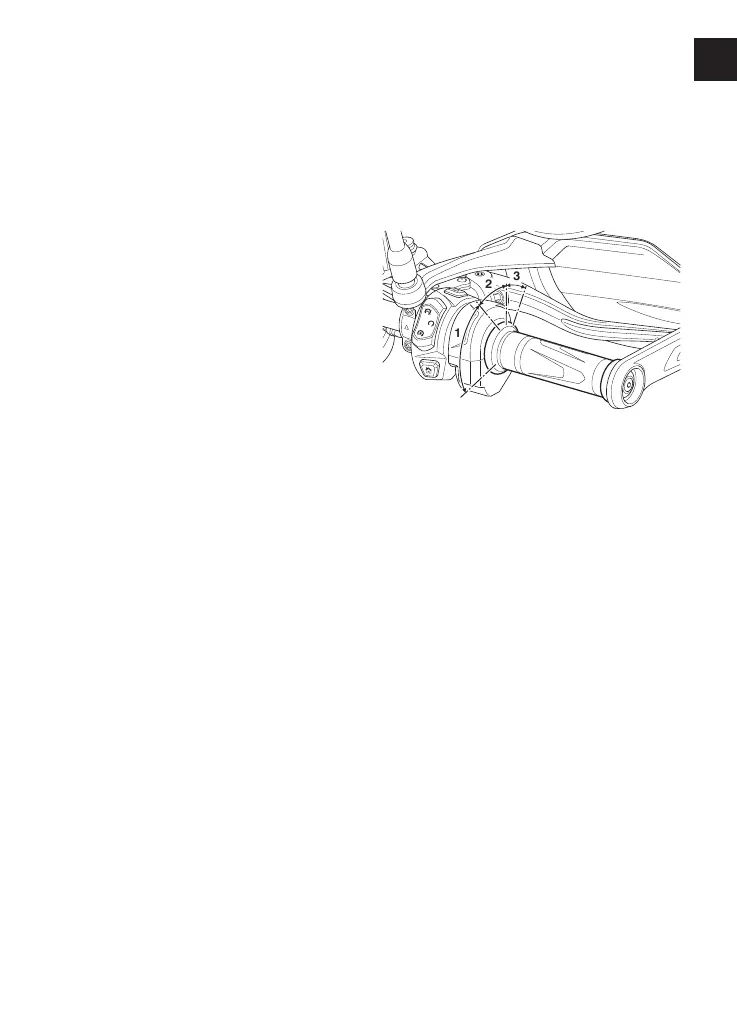

Throttle Control
This Triumph model has an electronic
throttle twist grip to open and close the
throttles via the engine control unit.
There are no direct-acting cables in the
system.
1
2
3
1. Throttle open position
2. Throttle closed position
3. Cruise control cancel position
The throttle grip has a resistive feel to it
as it is rolled rearwards to open the
throttles. When the grip is released it
will return to the throttle closed position
by its internal return spring and the
throttles will close.
From the closed position, the throttle
twist grip can be rolled forward 0.12 -
0.16 in (3 - 4 mm) to deactivate the
cruise control (if equipped), see
page81.
There are no user adjustments for the
throttle control.

Triumph Tiger 900 GT Specifications

General

Displacement	888 cc
Power	93.9 HP (70 kW) @ 8, 750 rpm
Torque	87 Nm @ 7, 250 rpm
Transmission	6-speed
Seat Height	810-830 mm (adjustable)
Tires (Front)	100/90-19
Tires (Rear)	150/70 R17
Engine Type	Liquid-cooled, 12 valve, inline 3-cylinder
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial monobloc calipers
Rear Brakes	Single 255mm disc, Brembo single piston sliding caliper
Fuel Capacity	20 L
Frame	Tubular steel frame
ABS	Switchable ABS
Traction Control	Switchable traction control
Riding Modes	Road, Rain, Sport
Rear Suspension	Monoshock, adjustable preload and rebound damping
Weight (Wet)	210 kg (463 lbs)
Instrumentation	TFT color display
