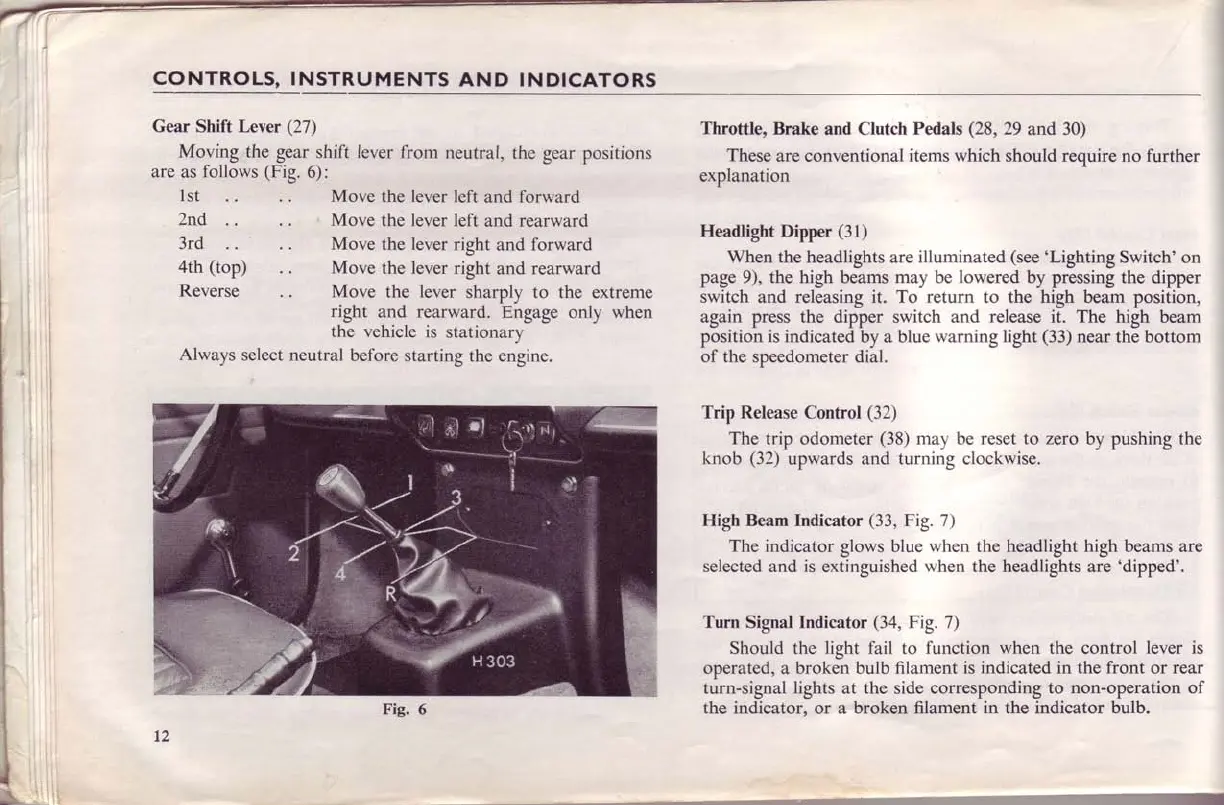

Gear
Shift
Lever
(27)
Moving,the
gear
shift
lever
from
neutral,
the gear positions
are as
follows
(Fig.
6):
Throttle,
Brake
and Clutch Pedals
(28,29
and
30)
These
are conventional
items which
should
require
no further
explanation
Headlight
Dipper
(31)
When
the headlights
are
illuminated
(see'Lighting
Switch'
on
page
9),
the high
beams
may be lowered
by pressing the dipper
switch and releasing it. To
return
to the high beam
position,
again press the dipper
switch
and release it. The high
beam
position is indicated
by a blue
warning
light
(33)
near
the bottom
of the speedometer dial.
Trip Release
Control
(32)
The trip odometer
(38)
may be reset to zero by
pushing
the
knob
(32)
upwards and turning clockwise.
High Beam Indicator
(33,
Fig.
7)
The indicator
glows blue
when the headlight high beams
are
selected
and
is
extinguished
when the headlights
are
'dipped'.
Turn
Signal Indicator
(34,
Fig. 7)
Should the
light fail
to
function when the
control
lever
is
operated,
a
broken bulb filament
is indicated in the front
or
rear
turn-signal
lights
at
the
side
corresponding to
non-operation
of
the indicator, or a broken filament
in
the
indicator bulb.
lst
2nd
3rd
4th
(top)
Reverse
Move
the lever left
and
forward
Move
the lever left
and
rearward
Move
the lever
right
and
forward
Move
the
lever
right
and rearward
Move
the lever
sharply to the
extreme
right
and
rearward.
Engage
only when
the vehicle is
stationary
Always
select neutral
before
starting
the engine.
