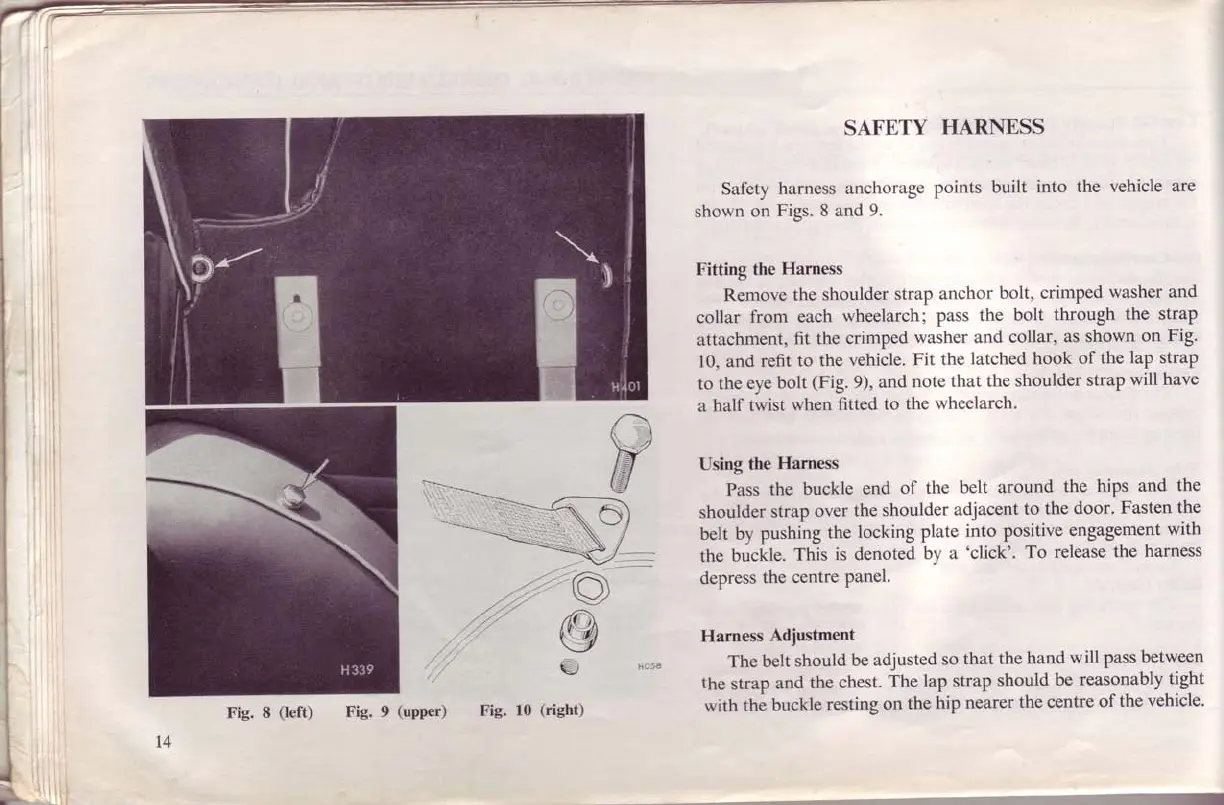

Triumph TR6 - Safety Harness Operation; Fitting the Harness; Using the Harness; Harness Adjustment

A
6)
Fig.
10
(right)
SAFETY
HARNESS
Safety
harness anchorage
points
built
into the vehicle
shown
on
Figs. 8 and
9.
Fitting the
Harness
Remove
the
shoulder
strap
anchor
bolt,
crimped
washer
and
collar
from
each
wheelarchi
pass
the bolt
through
the
strap
attachment,
fit the crimped
washer
and
collar,
as
shown
on
Fig.
10,
and
refit
to
the vehicle.
Fit the
latched hook
of
the
lap strap
to the
eye
bolt
(Fig.
9),
and
note
that
the shoulder
strap
will
have
a
half
twist
when
fitted
to the
wheelarch.
Using
the
Harness
Pass
the
buckle
end
of the
belt around
the
hips
and
the
shoulder
strap
over
the
shoulder
adjacent
to
the
door.
Fasten
the
belt
by pushing
the
locking
plate
into positive
engagement
with
the
buckle.
This
is
denoted
by a
'click'.
To
release
the
harness
depress
the
centre
panel.
Harness
Adiustment
The
belt
should
be adjusted
so
that
the
hand
will
pass
between
the
strap
and
the chest.
The
lap strap
should
be
reasonably
tight
with
thi
buckle
resting
on
the
hip
nearer
the centre
of
the
vehicle.
':,j
t4
Fie.
8
(left)
Fig. 9
(upper)
