Triumph TR6 - Turn Signal Flasher Unit Replacement

ELECTRICAL
_f
l*-ut
lllumination
hrll
bulb
holder-which is
a
component of the main harness
-from
instrument.
IJnscrew bulb from
holder. Renew
bulb
and re-assemble.
Note
speedometer
and tachometer
each contain
tso illumination bulbs.
lVarning
Lights
Pull bulb holder-which
is
a
component of the
main
harness-from instrument
or housing.
[Jnscrew bulb from
holder.
Renew
bulb
and
re-assemble.

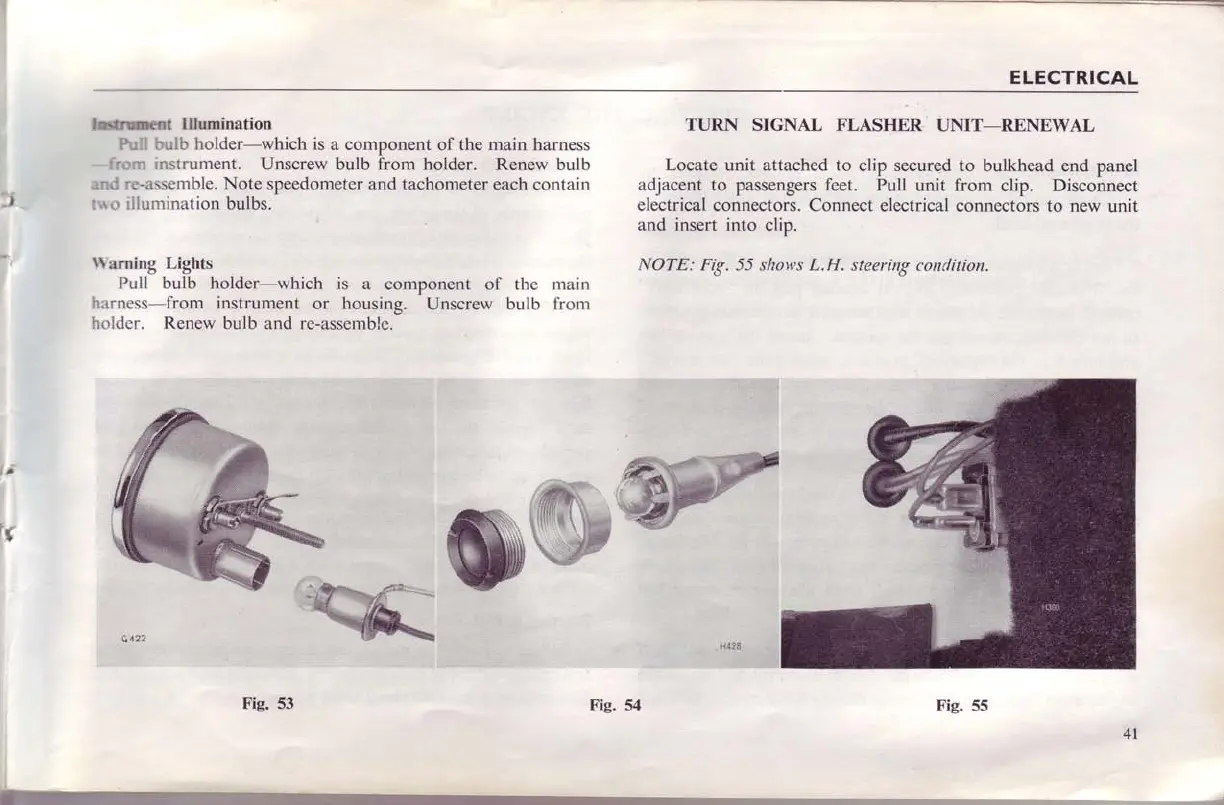

TURN SIGNAL FLASHER
UNIT-RENEWAL
Locate
unit attached to
clip secured to
bulkhead end
panel
adjacent to
passengers
feet.
Pull
unit
from
clip. Disconnect
electrical connectors.
Connect electrical connectors
to new
unit
and insert into
clip.
NOTE: Fig. 55 shows L.H.
steering condition.
la
tg
i",$ff
Fig.
53
Fig. 54
trrg.
Jt
