REGULAR MAINTENANCE

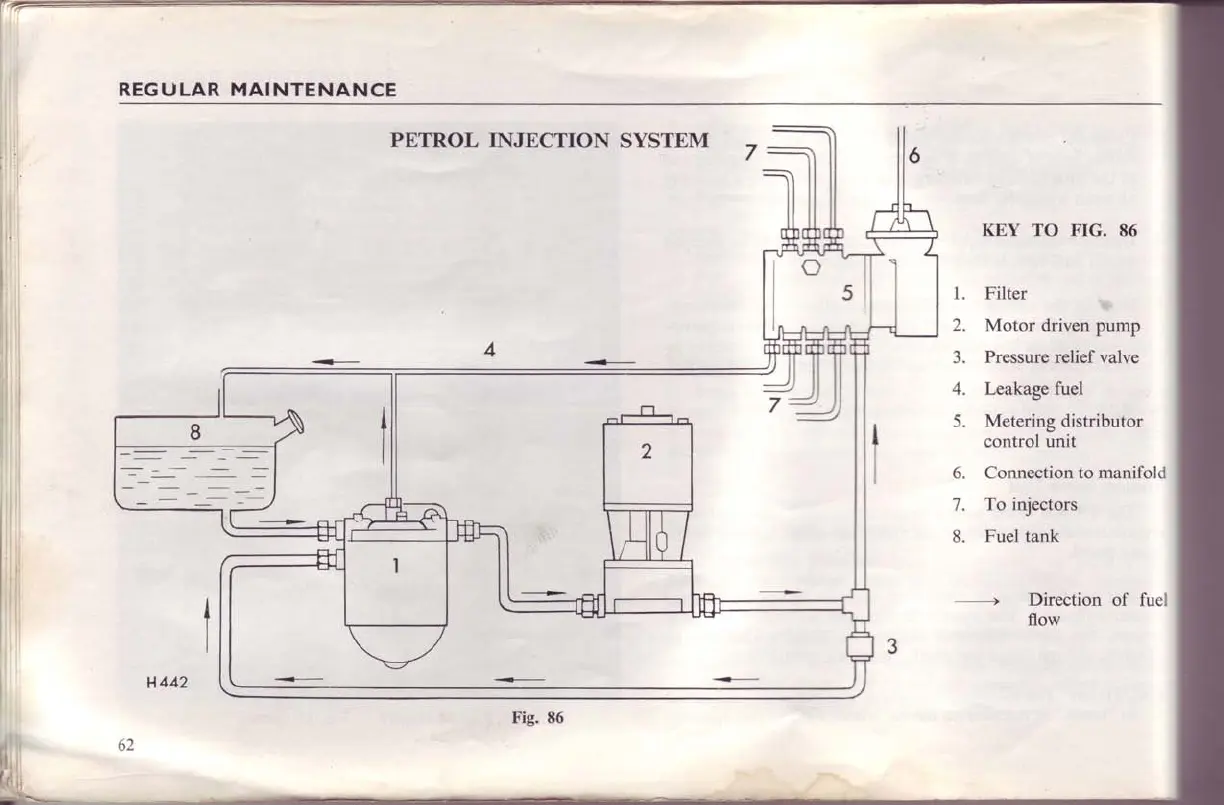

PETROL INJECTION
SYSTEM
KEY TO
FIG. 86
1. Filter
2.
Motor driven
pump
3.
Pressure relief
valve
4. Leakage fuel
5. Metering distributor
control unit
6. Connection
to
manifold
7.
To injectors
8.
Fuel tank
Direction
flow
Fig. 86
H442
