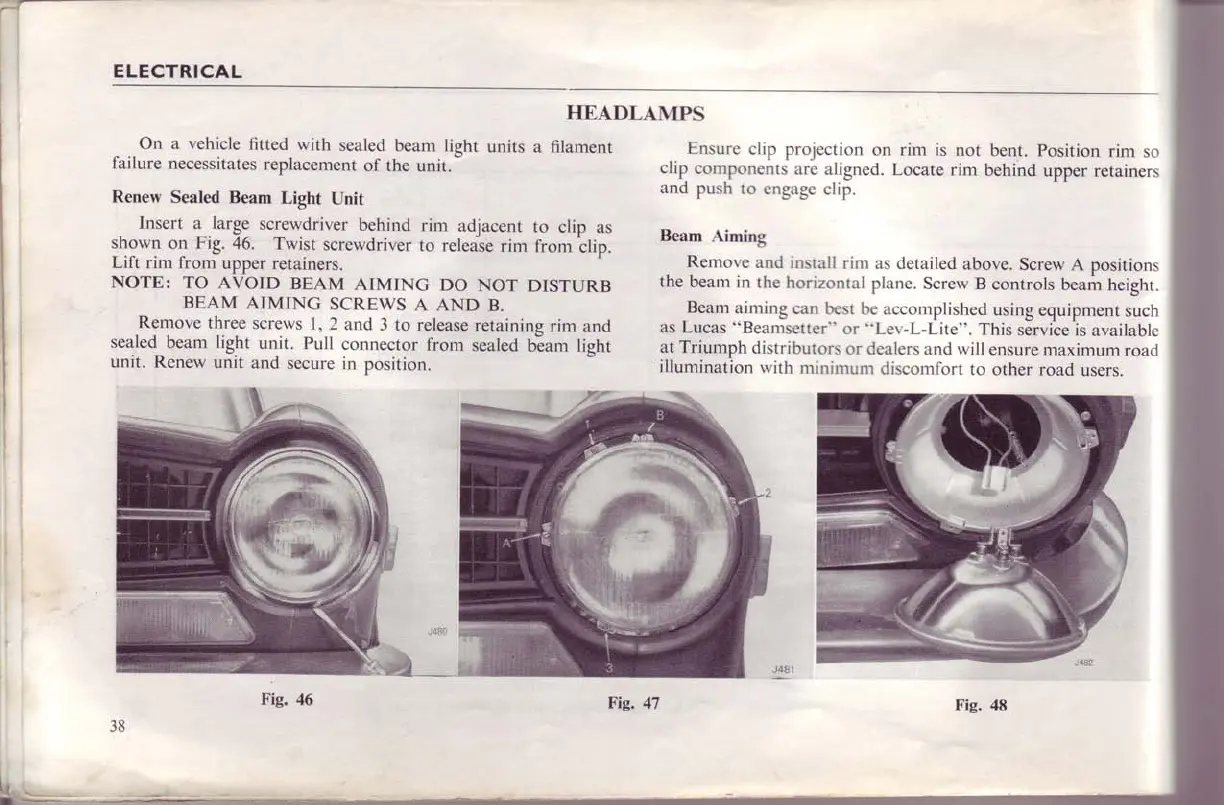

Triumph TR6 - Headlamp Maintenance and Aiming

ELECTRICAL
rIEADLAMPS
On a
vehicle
fitted
with
sealed
beam light
units
a filament
failure
necessitates
replacement
of the
unit.-
Renew
Sealed Beam
Light
Unit
.
Insert
1.lu.g9
screwdriver
behind
rim
adjacent
to
clip
as
:19*T
on Fig.
46.
Twist
screwdriver
to release
rim
from
clip.
Lift
rim
from
upper
retainers.
NOTE:
TO AVOID
BEAM
AIMING
DO
NOT
DISTURB
BEAM
AIMING
SCREWS
A AND
B.
Remove
three
screws
1, 2
and
3
to release
retaining
rim
and
sealed
beam
light
unit. Pull
connector
from
sealed
bEam lieht
unit. Renew
unit
and
secure in
position.
Ensure
clip
projection
on rim
is
not
bent.
position
rim
so
clip
components
are aligned.
Locate
rim
behind
upper retainers
and
push
to
engage
clip.
Beam
Aiming
Remove
and install
rim
as detailed
above.
Screw
A
positions
the
beam in
the
horizontal
plane. Screw B
controls
beam
height.
_Beam
aiming
can
best be
accornplished
using
equipment
such
as Lucas
"Beamsetter"
or
"Ler'-L-Lite".
This
servicels
available
at Triumph
distributors
or dealers
and will
ensure
maximum
road
illumination
with
minimum
discomfort
to
other road
users.
38
Fig. 47
Fig. 48
