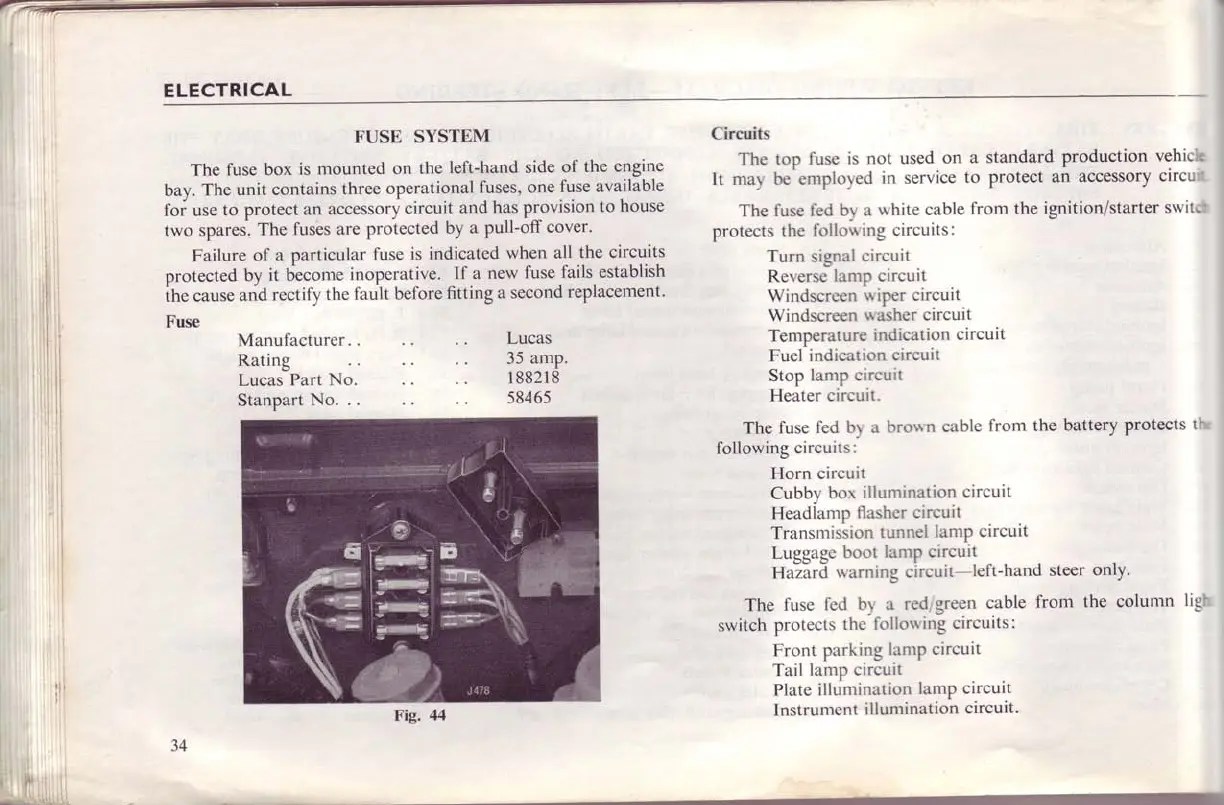

G'
FUSE
SYSTE,M
The
fuse
box
is
mounted on
the
left-hand side
of
the
engine
bay.
The unit
contains
three
operational
fuses,
one
fuse
available
foi use
to protect
an
accessory
circuit
and
has pr-ovision
to house
two
spares.
The
fuses
are protected
by
a
pull-off
cover.
Failure
of
a particular
fuse
is indicated
when
all
the
circuits
protected
by
it become
inoperative.
-If
a
new
fuse
fails
establish
ihe
cause
and
rectify
the
fault
before
fitting
a second
replacement.
Fuse
Lucas
35
amp.
1 8821
8
58465
Manufacturer.
.
Rating
Lucas
Part
No.
Stanpart
No. .
Circuits
The top
fuse is not used
on
a standard
production
vehic't
It
mar be-en'rplored
in
service
to protect
an
accessory
circu.'
The
fuse
fed bi a
white cable
from the
ignition/starter
swit''
protects
the
follouing
circuits:
Turn siqnal
circuit
Rererse
lanip circuit
Windscreen
u
iper circuit
Windscreen
rrasher
circuit
Temperature
indication
circuit
Fuel
indication
circuit
Stop
lanrp circuit
Heater circuit.
The
fuse
fed br a
bro*
n
cable
from
the
battery
protects
tf
following
circuits:
Horn
circuit
Cubby
bor
illunrination
circuit
Headlanp
flashcr circuit
Transmission
tunnel
lanrp circuit
Luggage
boot
lamP circuit
H{zard
*arninq circuit-left-hand
steer
only.
The
fuse
fed br
a
red green
cable
switch
protects
the
folloriinq
circuits:
Front
parking
lanrP
circuit
Tail
lanip circuit
Plate
illuntination
lamP
circuit
Instrument
illumination
circuit.
from
the
column
ligi
34
