Triumph TR6 - Wiring Diagrams Key and Colour Code

ELECTRICAL

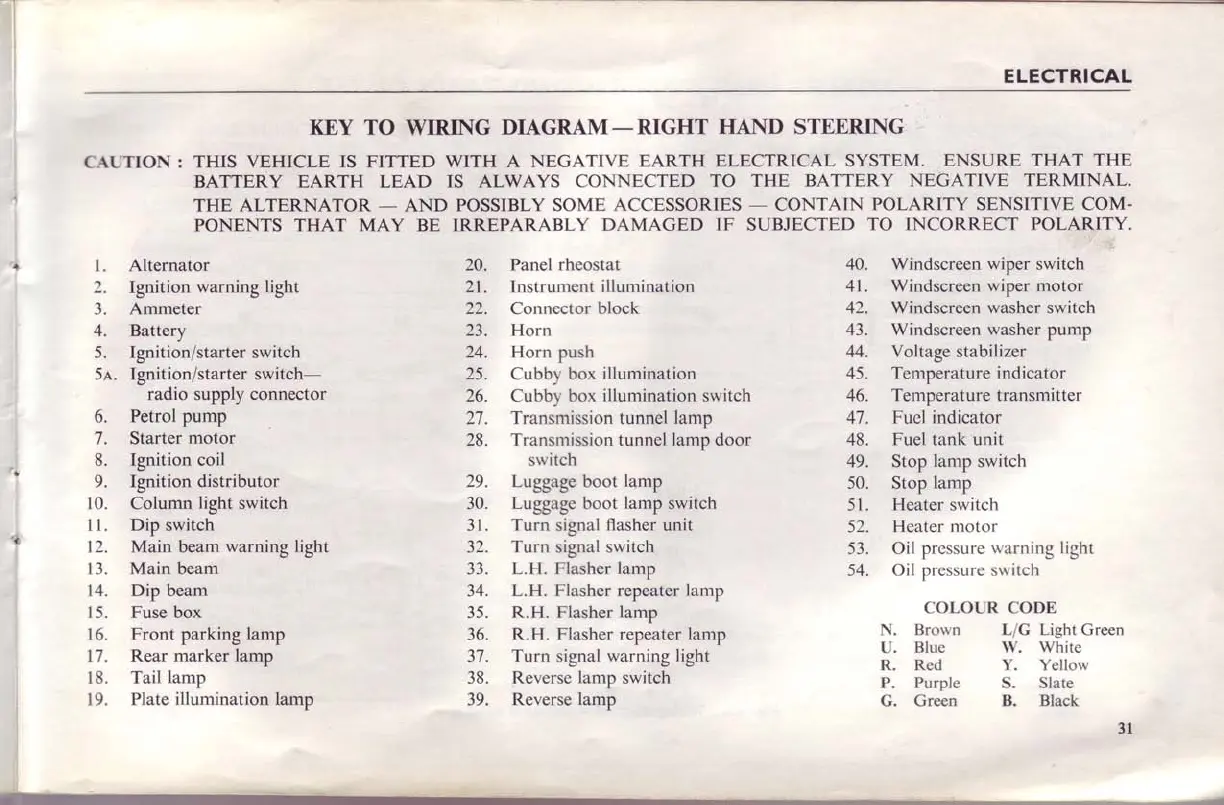

KEY TO WIRING
DIAGRAM_RIGHT
HAND
STEERING
C.{UTION:
THIS
VEHICLE
IS FITTED WITH A NEGATIVE
EARTH ELECTRICAL SYSTEM.
ENSURE THAT THE
BATTERY EARTH LEAD
IS ALWAYS CONNECTED TO
THE BATTERY NEGATIVE TERMINAL.
THE ALTERNATOR
-
AND POSSIBLY
SOME ACCESSORIES
-
CONTAIN
POLARITY SENSITIVE COM-
PONENTS THAT MAY BE IRREPARABLY
DAMAGED
IF
SUBJECTED
TO INCORRECT FOLARITY.
l. Alternator
2, Ignition warning
light
3. Ammeter
4.
Battery
5.
Ignition/starter switch
5a. Ignition/starter switch-
radio
supply connector
6.
Petrol pump
7. Starter
motor
8. Ignition coil
9.
Ignition distributor
10.
Column
light
switch
I l. Dip switch
12. Main
beam
warning
light
13. Main
beam
14. Dip
beam
15. Fuse box
16. Front parking
lamp
17. Rear
marker lamp
18. Tail
lamp
19. Plate
illumination
lamp
20. Panel
rheostat
21. Instrument
illumination
22. Connector
block
23. Horn
24. Horn push
25.
Cubby
box
illumination
26. Cubby box
illumination
switch
27.
Transmission
tunnel
lamp
28.
Transmission
tunnel
lamp door
switch
29.
Luggage
boot
lamp
30.
Luggage
boot
lamp
switch
31. Turn
signal
flasher unit
32.
Turn
signal switch
33.
L.H. Flasher
lamp
34.
L.H. Flasher repeater
lamp
35.
R.H. Flasher
lamp
36.
R.H. Flasher repeater lamp
37. Turn signal warning
light
38.
Reverse
lamp
switch
39.
Reverse
lamp
40. Windscreen
wiper
switch
41. Windscreen
wiper motor
42. Windscreen
washer
switch
43.
Windscreen washer
pump
44. Voltage stabilizer
45.
Temperature indicator
46.
Temperature transmitter
47.
Fuel indicator
48.
Fuel tank unit
49. Stop
lamp
switch
50. Stop
lamp
51. Heater switch
52.
Heater motor
53. Oil pressure
warning light
54. Oil pressure
switch
COLOUR CODE
N.
U.
R.
P.
G.
Brou'n L/G Light
Green
Blue
W. White
Red Y. Yellow
Purple
S. Slate
Green B.
Black
31
