Triumph TR6 - Soft Top Operation; Lowering the Soft Top

7-

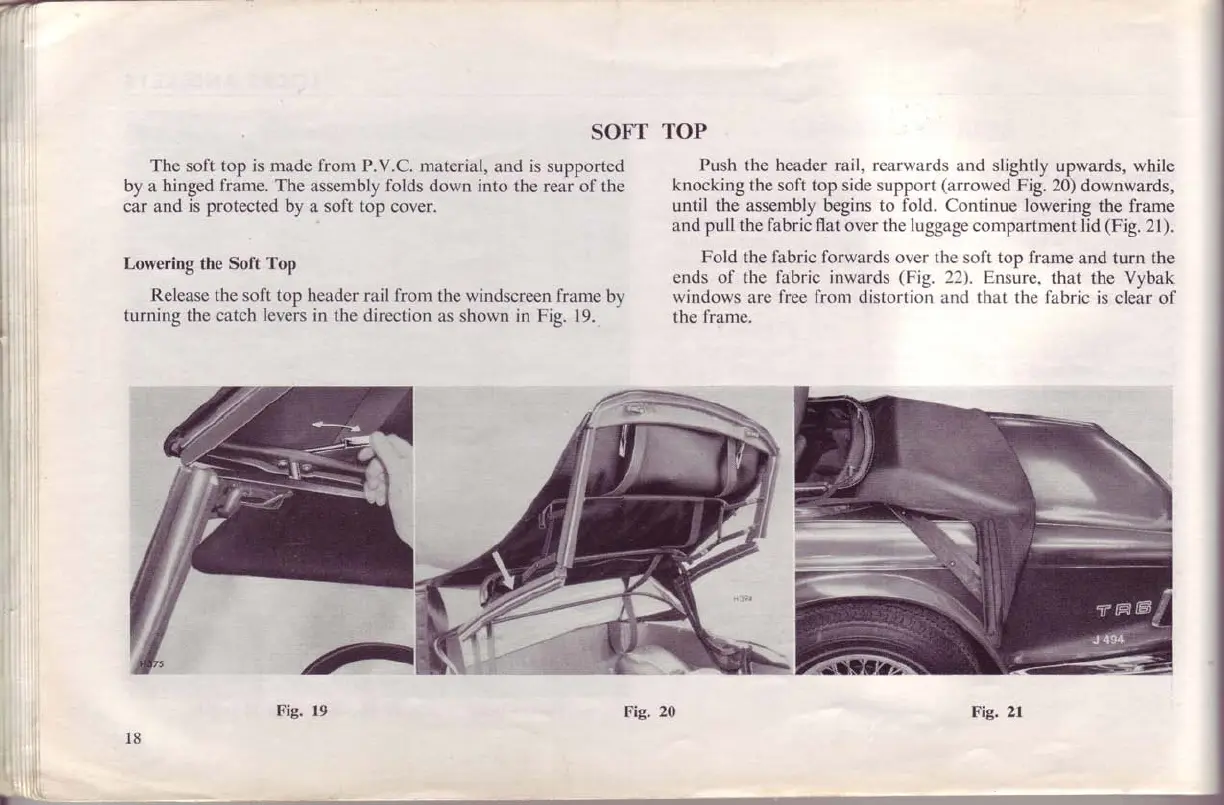

SOFT
The
soft
top is made from P.V.C. material,
and
is
supported
by a
hinged frame. The
assembly folds down into
the rear of the
car and
is
protected
by
a soft top cover.
Lowering the Soft Top
Release the soft top header
rail from the
windscreen frame
by
turning the catch
levers
in the
direction as
shown
in Fig.
19.
TOP
Push the header rail, rearwards
and slightly
upwards,
while
knocking
the soft top side support
(arrowed
Fig.
20)
downwards,
until the assembly begins to fold. Continue lowering
the
frame
and pull
the fabric flat
over the
luggage
compartment
lid
(Fig.
21).
Fold the fabric forwards
over the soft top frame
and
turn the
ends
of the
fabric inwards
(Fig.
22). Ensure,
that
the Vybak
windows
are
free from
distortion and that the fabric
is
clear of
the
frame.
h
18
Fig. 19
Fig. 20
Fig.
21
