ASSEMBLY STEPS
STEP 2: SADDLE ASSEMBLY

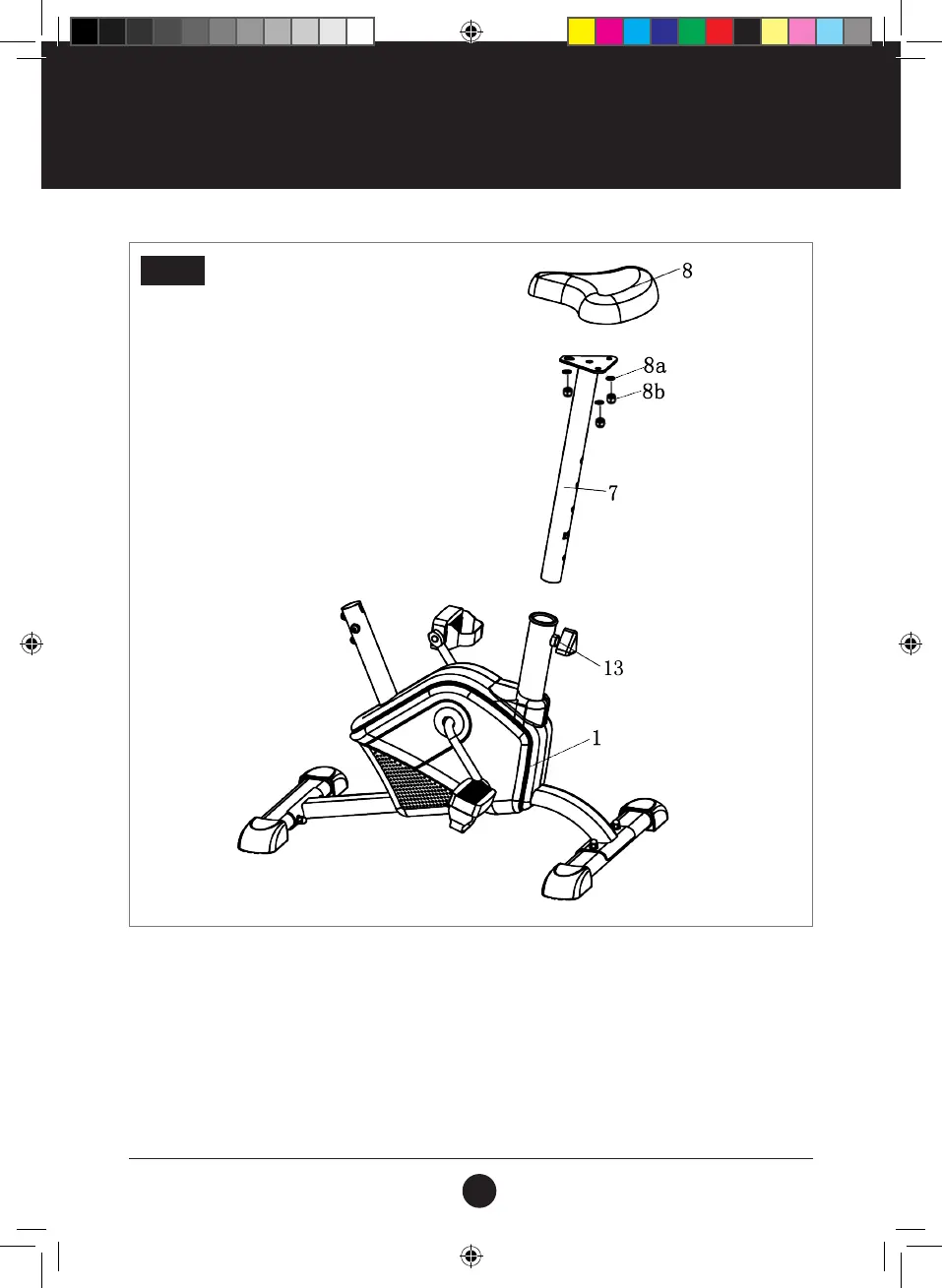

Fix Saddle (8) to Saddle Support (7) with 3 Saddle Washers (8a), and 3 Saddle Nuts (8b) below the Saddle (8).
Screw off the Knob (13). Insert the assembly of Saddle Support (7) to the Main Frame (1). Adjust the height of Saddle
Support (7) as you need or require, and secure it with Knob (13).
