Trojan OLYMPIAD 300 User Manual

1061M-5

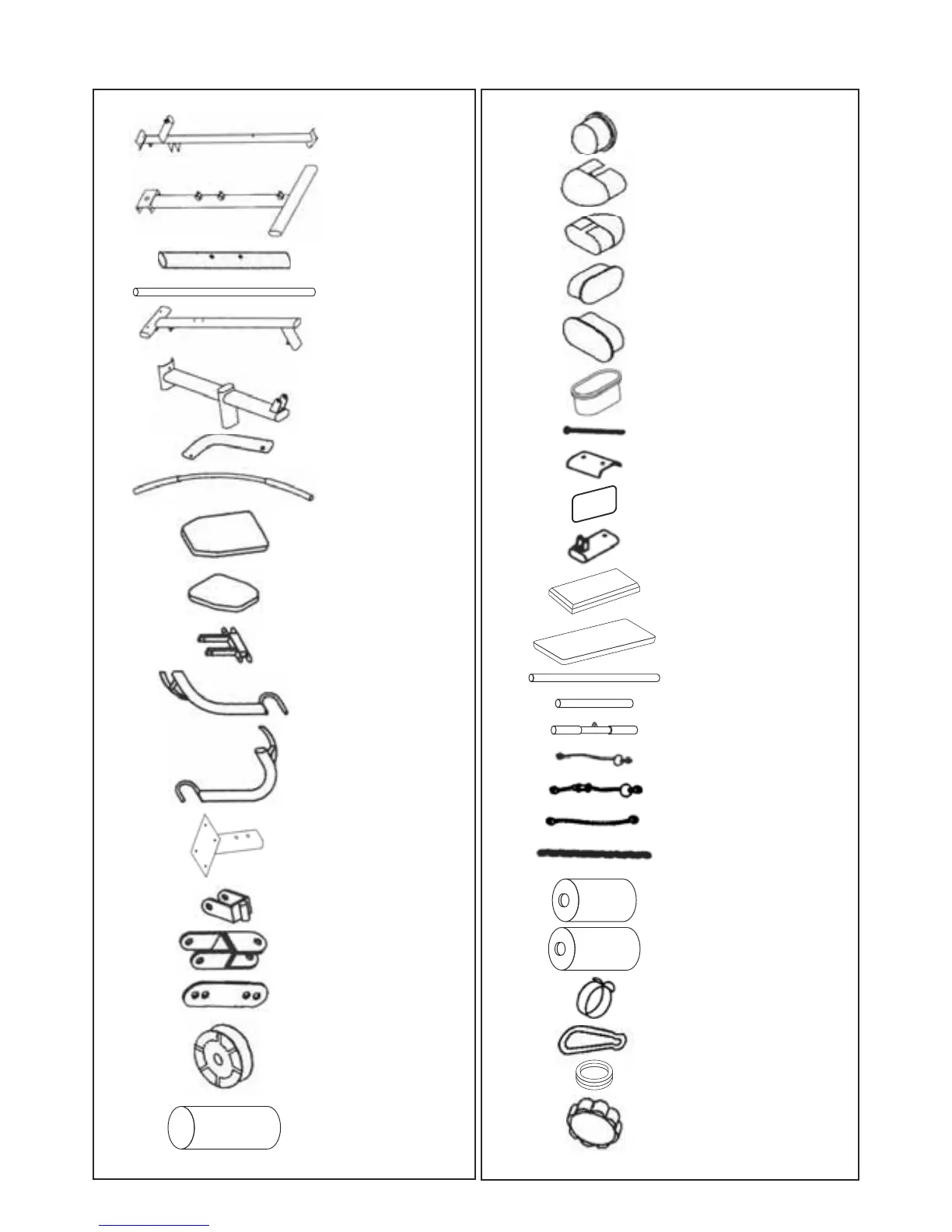

3. PARTS LIST (GYM)
No. Illustrator Description Q’ty
20 End Cap 1” 12
21
End Cap
(40 x 80 mm) 4
22
End Cap
(30 x 70 mm) 4
23
End Cap
(30 x 60 mm)
2
24
End Cap
(40 x 80 mm) 4
25 Plastic Sleeve 1
26 Weight Stack Pin 5” 1
27 Fitting Plate 2
28
Rubber Sticker
(Pre-Assemble to 11)
1
29 Revolving Part 1
30 Top Plate 15LBS
1
31 Weight Stack 15LBS 9
32 Selector Bar 1
33 Roller Tube 2
34 Lower Lat Bar 1
35
Cable
3930 mm/149.2”
1
36
Cable
3305 mm/130.1”
1
37
Cable
2160 mm/85.1”
1
38 Chain 1
39 Leg Foam Roller 7” 2
40
Leg Foam Roller 7-
1/2”
2
41 Ankle Strap 1
42 Snap Hook 4
43 Rubber Ring 2
44
Knob
(Pre-Assemble to
58 & 67)
1
No. Illustrator Description Q’ty
1 Support Tube 1
2T-Tube1
3 Horizontal Beam 1
4 Guide Tube 2
5 Ridge tube 1
6 Seat Beam 1
7 Leg Beam 1
8 Top Lat Bar 1
9
Back Cushion
(Big)
1
10
Seat Cushion
(Small)
1
11 Connecting Part 1
12
Butterfly Arm
(Left)
1
13
Butterfly Arm
(Right)
1
14
Seat Cushion
Beam
1
15
Pulley Bracket
2
16
Floating Pulley
Bracket
1
17
Pulley
Connecting Plate
2
18 Pulley 14
19
Arm Foam Roller
(Pre-Assemble
to 12&13)
2
