1061M-7
5. ASSEMBLY STEPS (GYM)

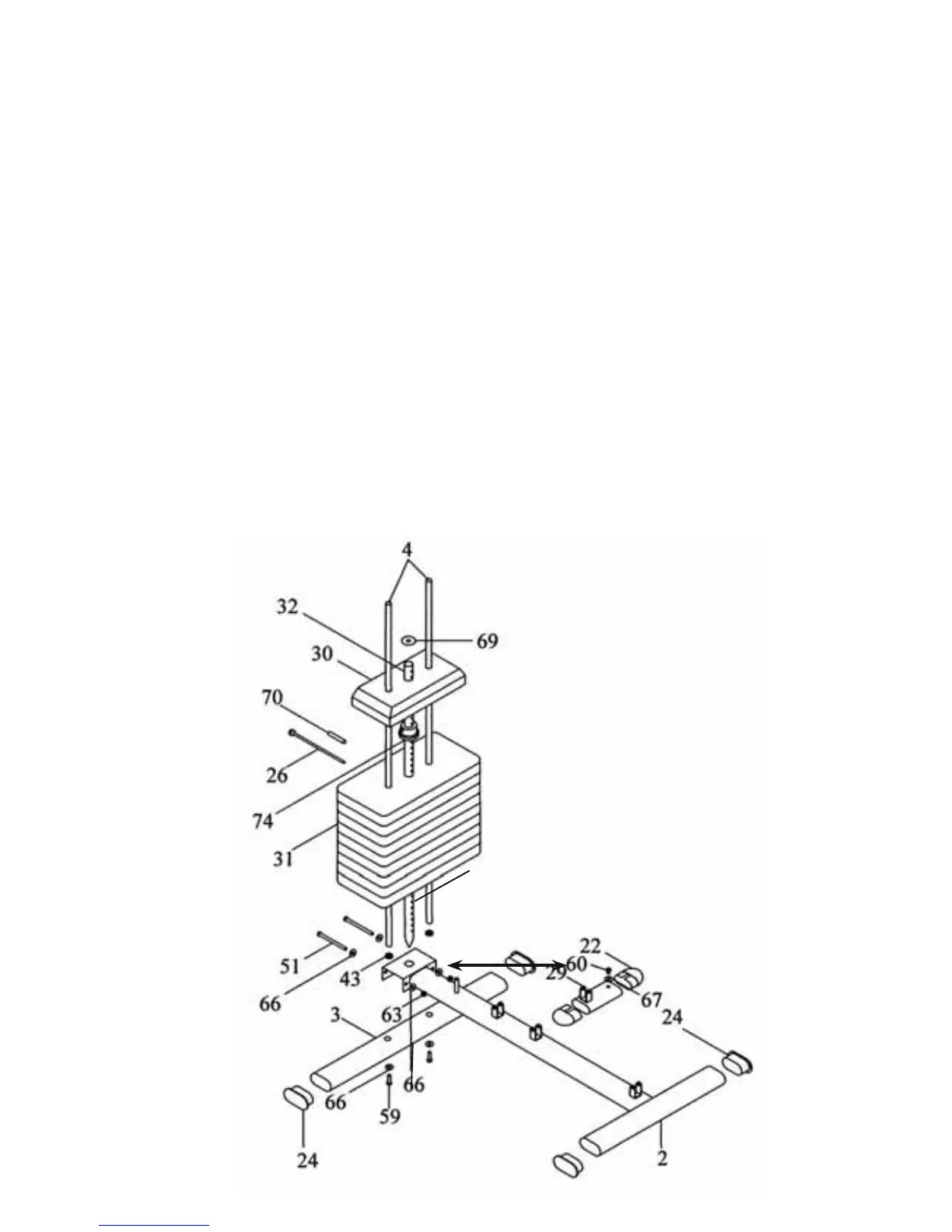

STEP 01 Assembly of the base frame and weight stack
Attach T-Tube (2) to the Horizontal Beam (3), secure them with two 3/8” x 4” Bolts (51), four 3/8” x 19mm Washer
(66) and two 3/8” Nuts (63).
Slide both Guide Tubes (4) into the two Rubber Rings (43) and through the Horizontal Beam (3), secure them with
two 3/8” x 19mm Washer (66) and two 3/8” x 1” Bolts (59).
Note: Two 3/8”x19mm Washer (66) and two 3/8”x1” Bolt (59) have been attached on the Guiding Tubes, so please separate
them, then follow Step 2 to assemble.
Place the nine Weight Stack plates (31) on the two Guiding Tubes (4).
Install Black Fixing Bushing (74) on Selector Bar (32). Place Fixing Pin (70) through the hole of Black Fixing
Bushing (74) and the rst hole of Selector Bar (32), then attach to the bottom part in the hook of Top Plate (30).
Then put Selector Bar (32) into the Weight Stack (31). Attach the Black Washer (69) on the middle hole of
Top Plate (30).
Connect the Revolving Part (29) with T-Tube (2), secure them with one 3/8” x 1/2” Bolt (60) and one 3/8” x 1”
Washer (67).
43
59
