1061M-10
ASSEMBLY STEPS (GYM)

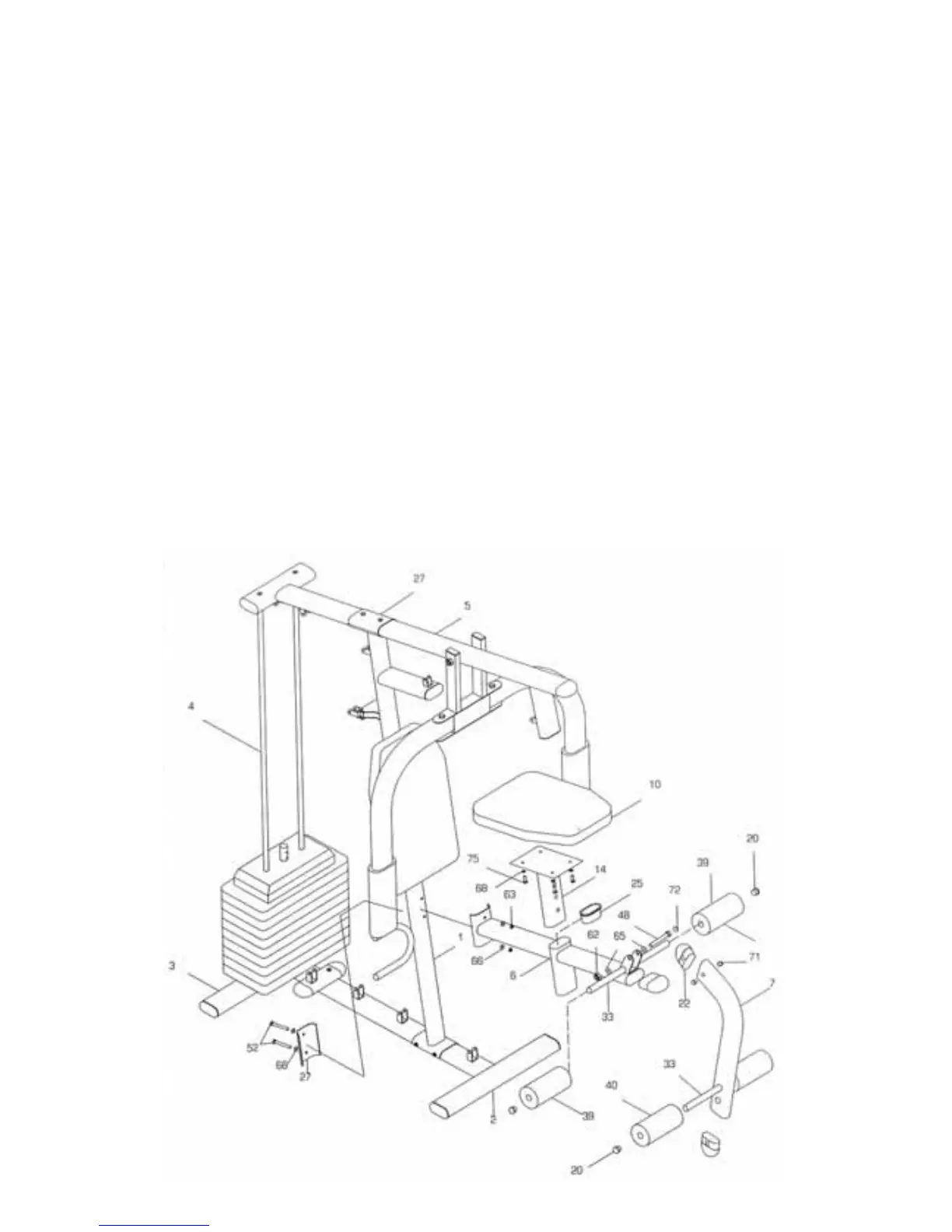

STEP 04 Assembly of the Seat Cushion and the Leg Curl
• Fix the Seat Beam (6) to the Support Tube (1), secure them with one Fitting Plate (27), four 3/8” x 19mm
Washer (66), two 3/8” x 2 1/2” Bolt (52) and two 3/8” Nut (63).
• Attach the Leg Beam (7) to the Seat Beam (6), secure them with two Brass Colour Bushing (71), one 19mm
End Cap (72), one 12” Nut (62), two 1/2” x 26mm Washer (65), and one 1/2” x 3” Bolt (48). Then attach the Seat
Cushion (10) to the Seat Cushion Beam (14), secure them with four 5/16” x 16mm Washer (68) and
four 5/16” x 3/4” Bolt (75).
• Put the Roller Tube (33) into the hole of Leg Beam (7). Then pour a little a bit of water onto the Roller tube (33).
• Attach two Leg foam rollers (40) on either side of the Roller Tube (33).
• Place 1” Endcap (20) on end of each Leg Foam Roller (40)
• Put the Roller Tube (33) into the front hole of Seat Beam (6), then pour a little bit of water onto the Roller Tube (33)
and then attach two Leg Foam Rollers (39) on the either side of the Roller Tube (33).
• Place 1” Endcap (20) on end of each Leg Foam Roller (40)
To Next Page
