Trojan OLYMPIAD 300 - STEP 03 Assembly of the Butterfly Set

1061M-9
ASSEMBLY STEPS (GYM)

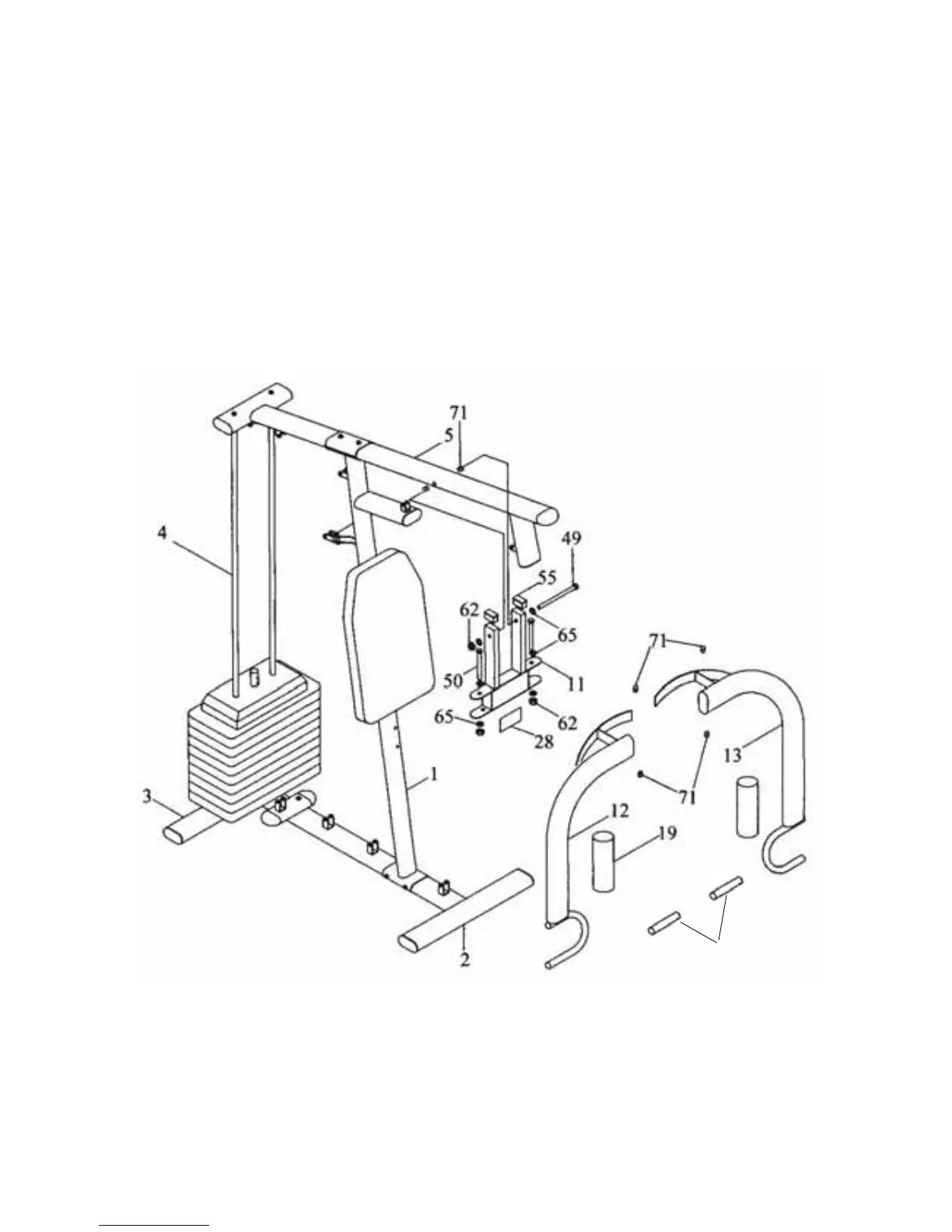

STEP 03 Assembly of the Butterfly Set
Rubber Sticker (28) has been attached on the back of Connecting Part (11) to protect Connecting Part (11) from But-
terfly Arm (12,13).
• Attach the Connecting Part (11) to Ridge Tube (5), secure them with one 1/2” x 6” Bolt (49), two 1/2” x 26mm
Washer (65), two Brass Colour Bushing (71) and two 1/2” Nut (62).
• Then attach Butterfly Arm (12,13), secure them with four Brass Colour Bushing (71), two 1/2” x 4” Bolts (50),
four 1/2” x 26mm Washer (65) and two 1/2” Nut (62).
Note:
The grips of both Butterfly Arms (47) and both Arm Foam Rollers (19) have been attached on the Butterfly Arm (12,13).
