Trojan POWER STACK 500 User Manual

1574-11
ASSEMBLY STEPS

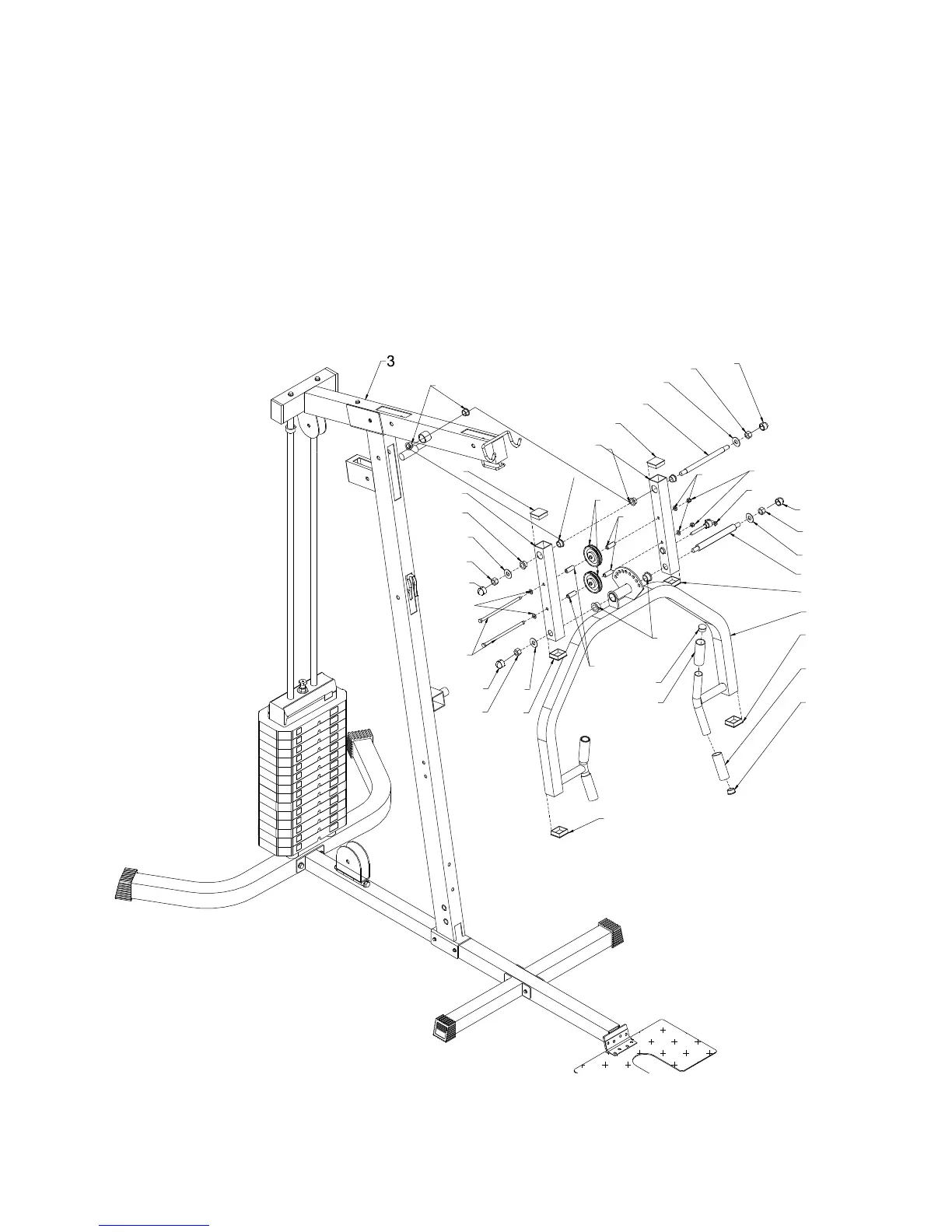

STEP 4
• Attach left/right Connect Frame (15, 14) to Top Frame(3) using Pivot Shaft (40) 6-Little Oil Bushings (61)
2-5/8” Washers (88) 2-5/8” Locknuts (85) 2-5/8” Plastic Dome Caps (104)
• Attach Press Arm (6) to ends of left/right Connect Frame (15, 14) using Big Pivot Shaft (39) 2-Copper Bushings (62)
2-5/8” Washers (88) 2-5/8” Locknuts (85) 1-Long Pop Pin (43). 2-5/8” Plastic Dome Caps (104)
• Install two Pulleys (46) between left/right Connect Frames (15, 14) using 2- 3/8”x8-3/4” Hex Bolts (93) 4-Long
Bushings (63) 4-3/8” Washers (86) 2-3/8” Locknuts (83)
104
39
85
50
93
104
63
86
88
85
50
62
50
52
57
104
104
43
88
85
61
57
52
50
6
86
83
40
88
85
61
14
50
46
63
88
15
61
50
