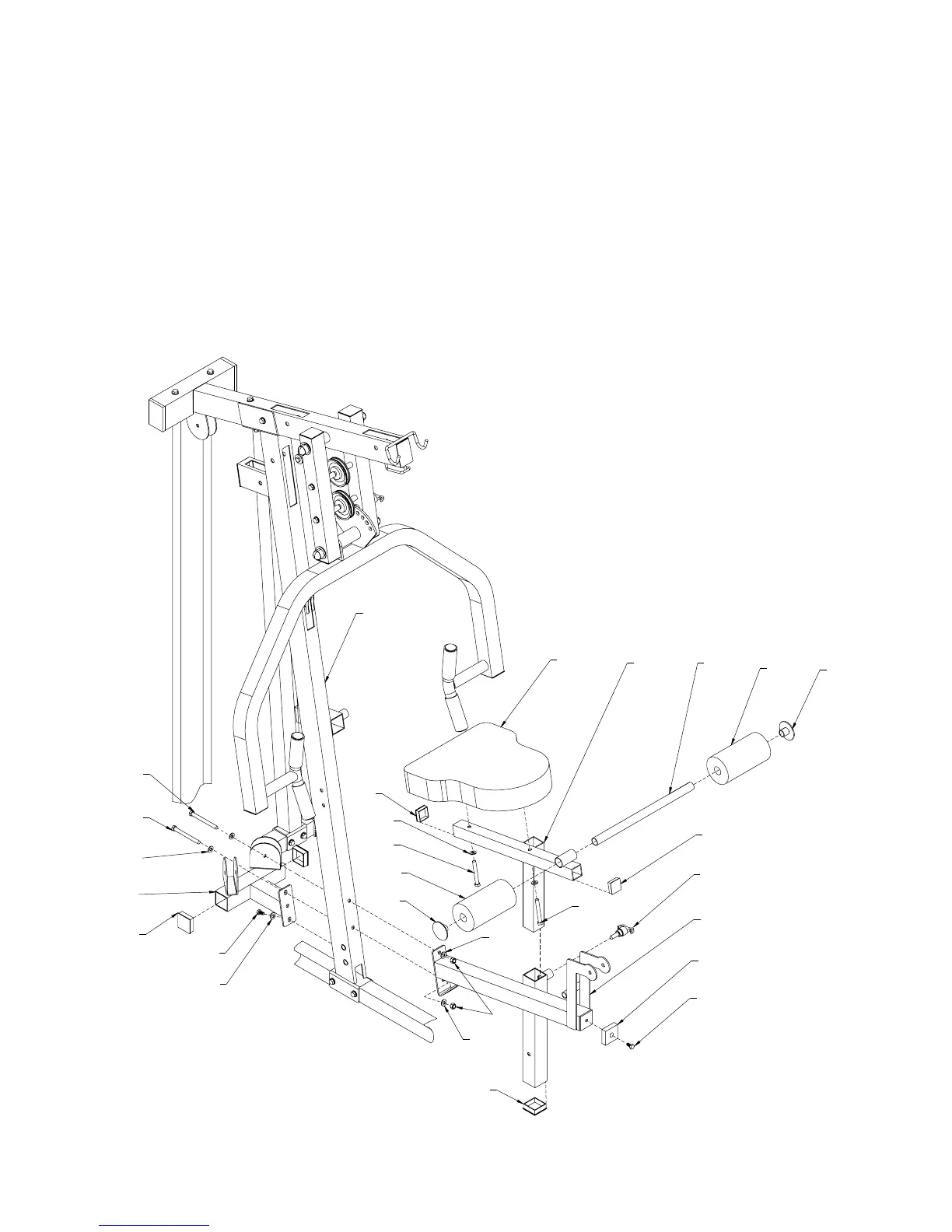

STEP 5
• Attach Bracket Support (16) and Seat Support Frame (11) to Front upright (7) using 1- 3/8” x 3- 3/4” Hex Bolt (74)
1- 3/8” x 3 - 7/8” Hex Bolt (73) 1- 3/8” x 1” Hex Bolt (82) 5- 3/8” Washers (86) 2- 3/8” Locknuts (83)
• Attach Seat Cushion (25) to Seat Support Frame (11) using 2-M8x53mm Hex Bolts (79) 2-M8 Washers (99).
• Attach Seat Frame (12) to Seat Support Frame (11) using Pop Pin (44).
• Insert Long Foam Rod (23l) into Bushings of Seat Frame (12) and press two Big Foam Rolls (32a), Round Caps (60)
onto Long Foam Rod (23l).
ASSEMBLY STEP
86
73
74
82
86
83
86
7
86
25
23L
32A
60
66
44
12
66
79
99
79
32A
60
11
53
96
50
50
16
