1574-14

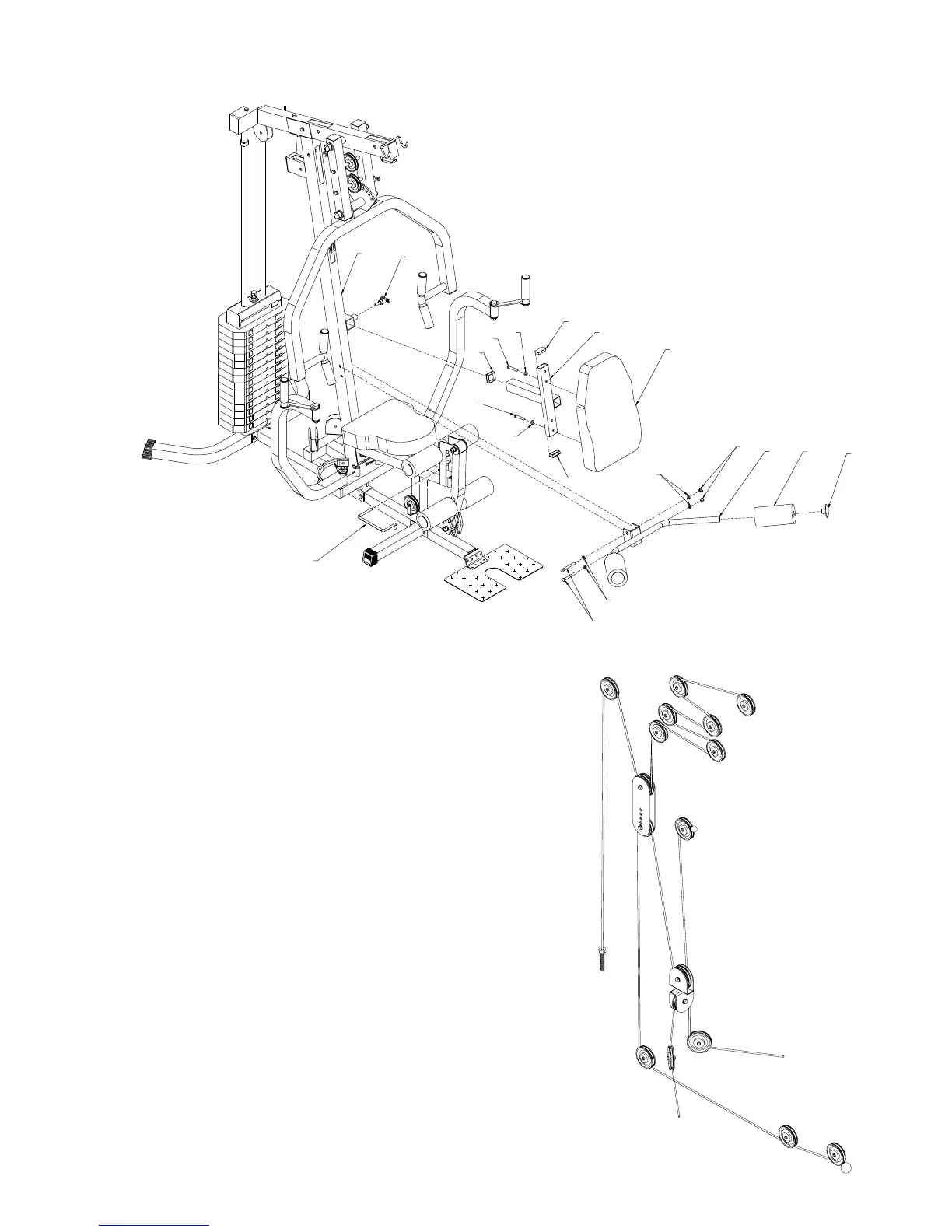

Step 7
• Attach Hand Bar (17) to Front Upright (7) using 2.
3/8”x3” Hex Bolts (75) 4-3/8” Washers (86) 2-3/8” Lock-
nuts (83).
• Press two Big Foam Rolls (32A), Round Caps (60) onto
ends of Hand Bar (17).
• Insert Backrest Support (13) into Front Upright (7) with
Pop Pin (44).
• Attach Backrest Cushion (24) to Backrest Support (13)
using 2-M8x40mm Hex Bolts (81) 2-M8 Washers (99)
• Install Lock Hook (101) onto Seat Support Frame (11)
ASSEMBLY STEP
44
7
60
32A
17
83
86
75
86
24
13
65
65
81
99
81
99
51
101
To Next Page
