12
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the previous page.

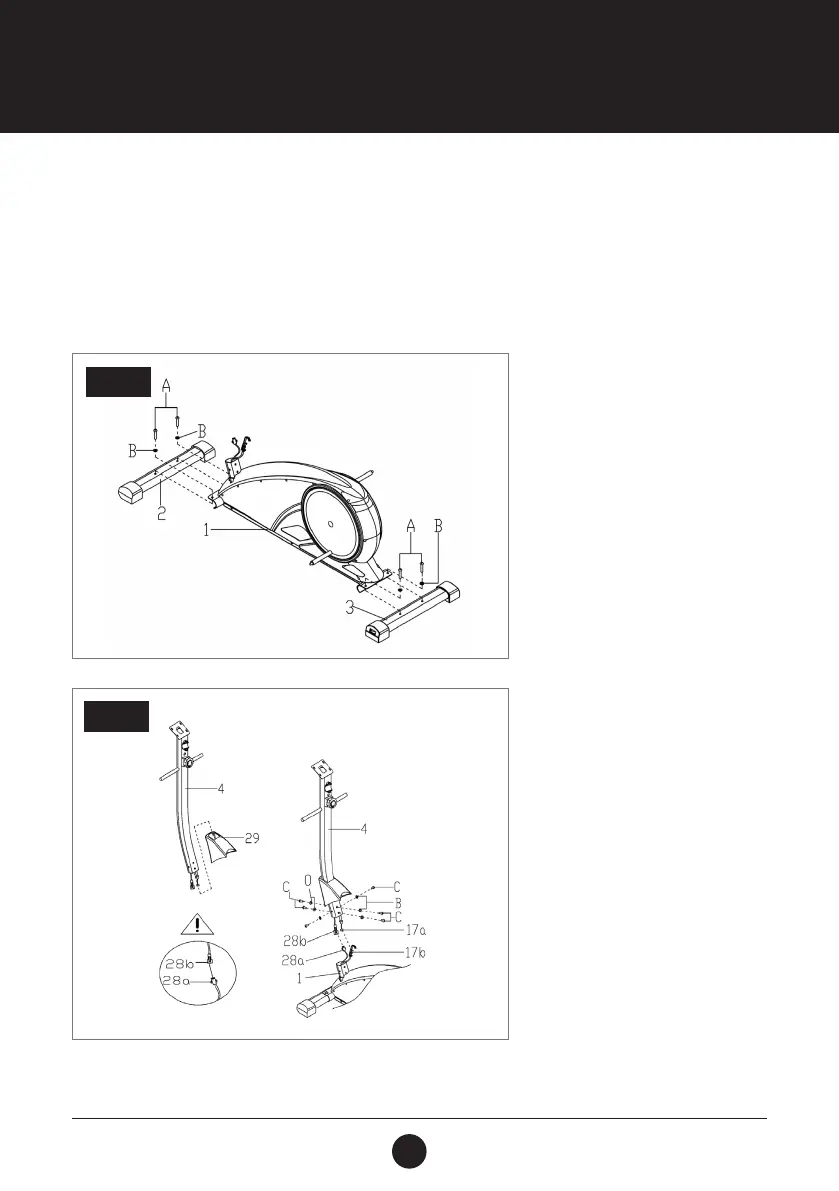

STEP 1: FRONT AND REAR
STABILISERS INSTALLATION
Assemble the Front Stabiliser (2)
and Rear Stabiliser (3) to the Main
Frame (1) with 2 Bolts (A) and 2
Washers (B).
STEP 2: INSTALLING THE
UP-RIGHT POST
Slide the Front Post Cover (29) on to the
Front Post (4).
Connect the Tension Knob (17 a) and the
Cable (17 b) together and the Console
Wire (28 a) to the Wire (28 b) from the
Main Frame (1).
Assemble the Front Post (4) to the Main
Frame (1) with 4 Bolts (C), 4 Washers (B)
and 4 Curved Washers (0).
Slide the Front Post Cover (29) down on
the Front Post (4) so that it rests on the
Main Frame (1).
STEP 2
STEP 1
To Next Page
