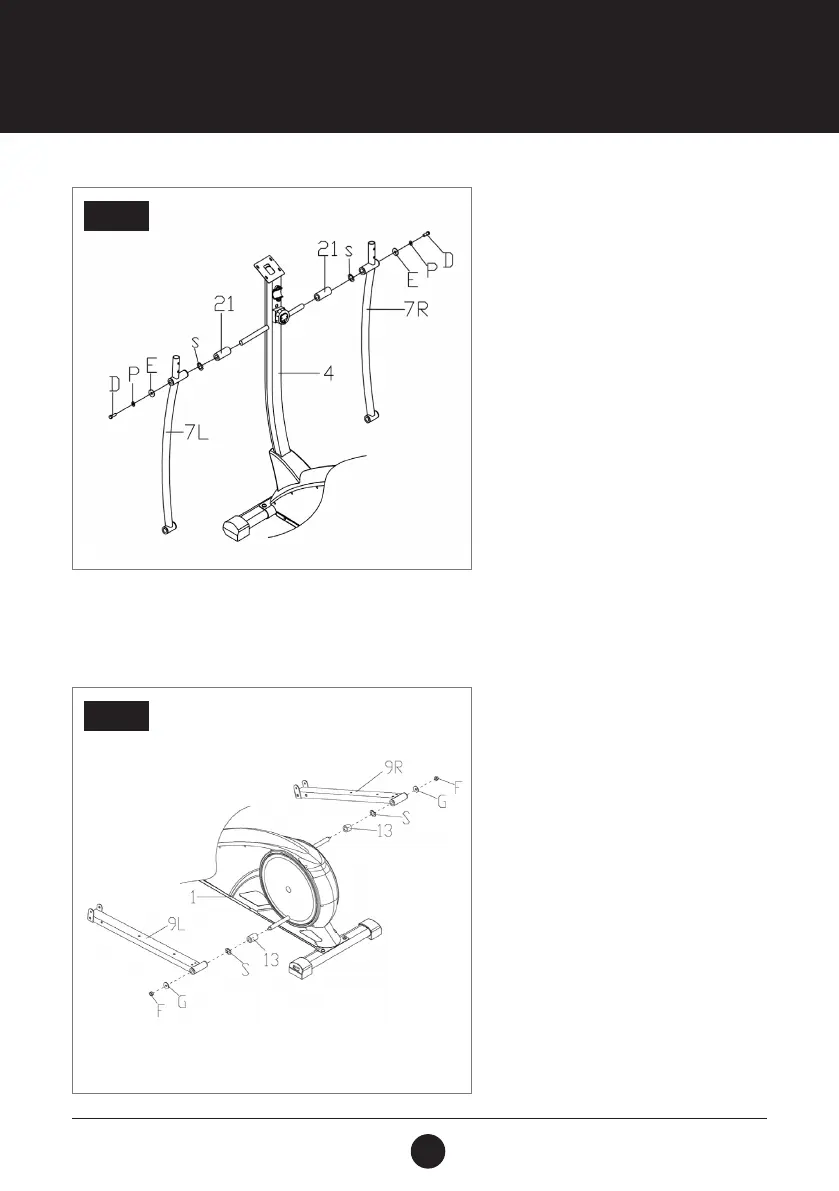

ASSEMBLY STEPS
STEP 3: INSTALLING THE
LOWER HANDLEBARS
Assemble the 2 Plastic Spacers (21), with
1 Washer (S), the Upper Handlebar (7R, 7L) over
the Front Post (4). Then tighten the Lower
Handle (7R, 7L) with 1 Hex Head Bolt (D), 1 Spring
Washer (P) and 1 Washer (E).
STEP 3
STEP 4: INSTALLING THE
PEDAL ARMS
Slide the Plastic Spacers (13), 1 Washer (S) and
the Pedal Arm (9R, 9L) on to the Main Frame (1).
Then tighten the Pedal Arms (9R, 9L) with
1 Washer (G) and 1 Nut (F).
STEP 4
