Trojan SUMMIT 280 - Page 14

14

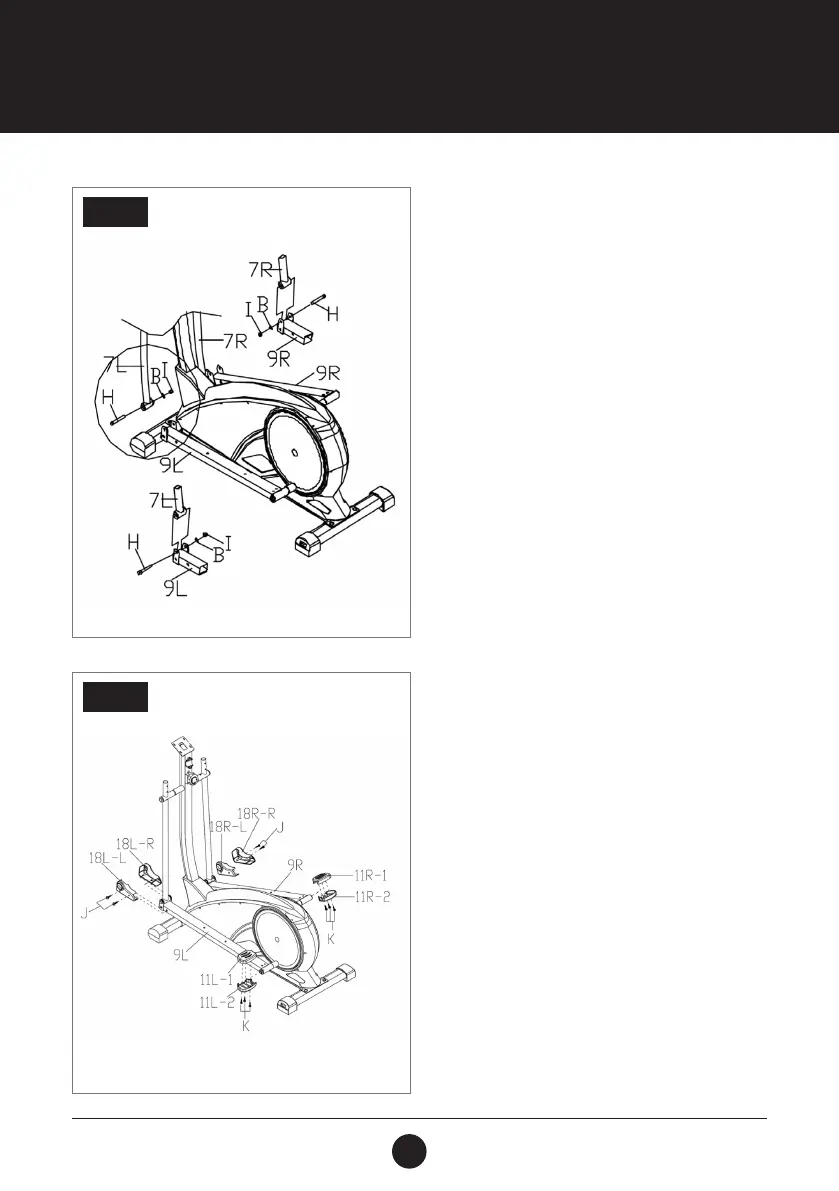

STEP 5: INSTALLING THE
LOWER HANDLEBAR
Assemble the Lower Handlebar (7R, 7L) through the
Pedal Arm (9R, 9L). Then tighten them with 1 Hex
Head Bolt (H), 1 Washer (B) and 1 Nut M8 (I).
ASSEMBLY STEPS
STEP 5
STEP 6: INSTALLING THE PEDAL BAR
Assemble the End Cap (11R, 11L) on the Pedal Arm
(9R, 9L) and tighten them with 3 Screws (K).
Assemble the End Cap (18R, 18L) into the Pedal Arm
(9R, 9L) and tighten them with 2 Screws (J).
STEP 6
