Trojan SUMMIT 280 - Page 15

15
ASSEMBLY STEPS

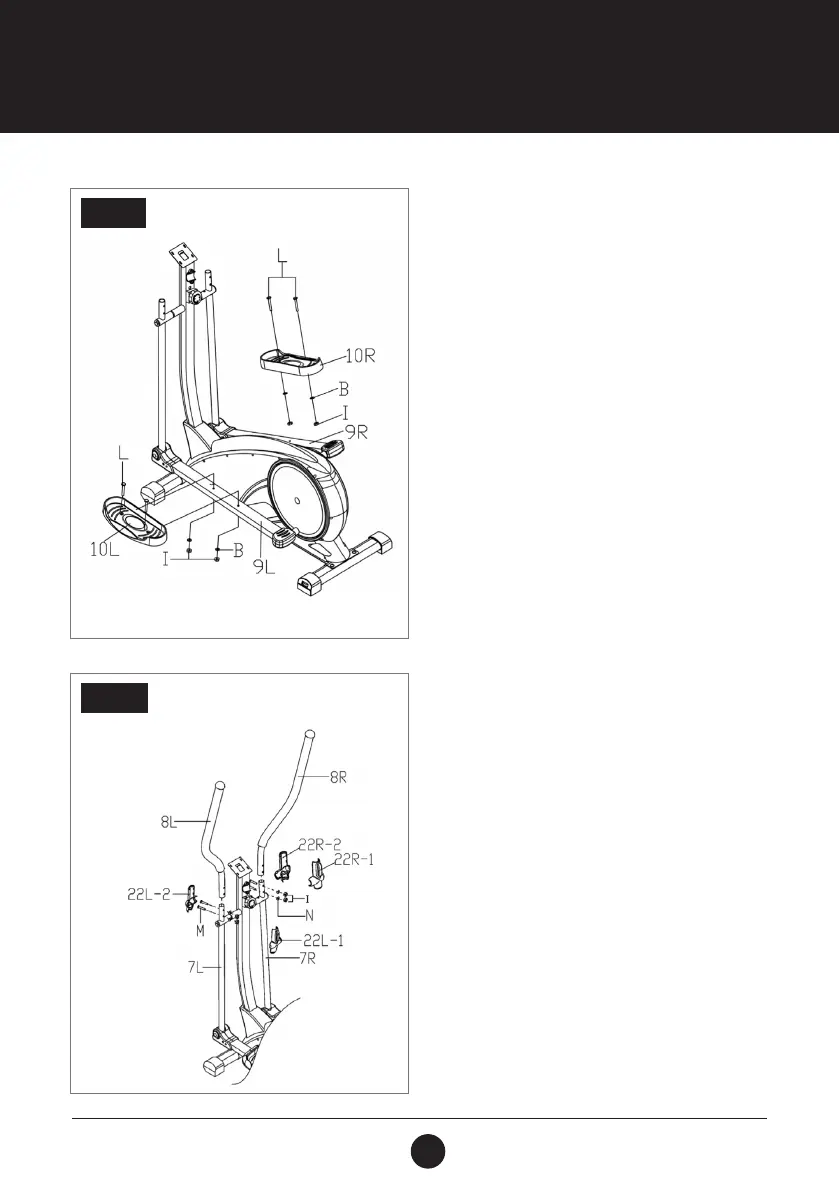

STEP 7: INSTALLING THE PEDAL
Assemble the Pedal (1OR, 1OL) on to the Pedal Arm
(9R, 9L) and tighten them with 2 Hex Head
Bolts (L) and 2 Washers (B) and 2 Nuts (I).
STEP 7
STEP 8: INSTALLING THE HANDLEBARS
Slide the Upper Handlebars (8R, 8L) into the Lower
Handlebars (7R, 7L).
Tighten the Lower Handlebars (7R, 7L) on the Upper
Handlebars (8R, 8L) with 2 Bolts (M), 2 Curved
Washers (N) and 2 Nuts (I).
Then clip the Handlebar Covers (22 R, 22 L) on the
Lower Handlebar (7R, 7L).
STEP 8
