Troxler PaveTracker Plus 2701-B - Keypad; Figure 2-1. Model 2701-B Keypad

2–2
TM
 

  

  
 
R
STORE STATUS
LIGHT YES
NO ESC
RECALL PROJ
7
8
BACK
9
SPACE
SETUP
TARGET
4
5
6
+
MODE
OFFSET
1
2
3
-
REF SPACE
0
ALPHA
LOCK
ENTER
START
Keypad
The Model 2701-B keypad (Figure 2–1) allows the operator to
access the gauge software. Troxler designed the keypad for
ease of use, with large keys and an anti-glare coating. Note
that the function keys are available only when the Ready
screen is displayed. Table 2–1 describes the function of each
key.

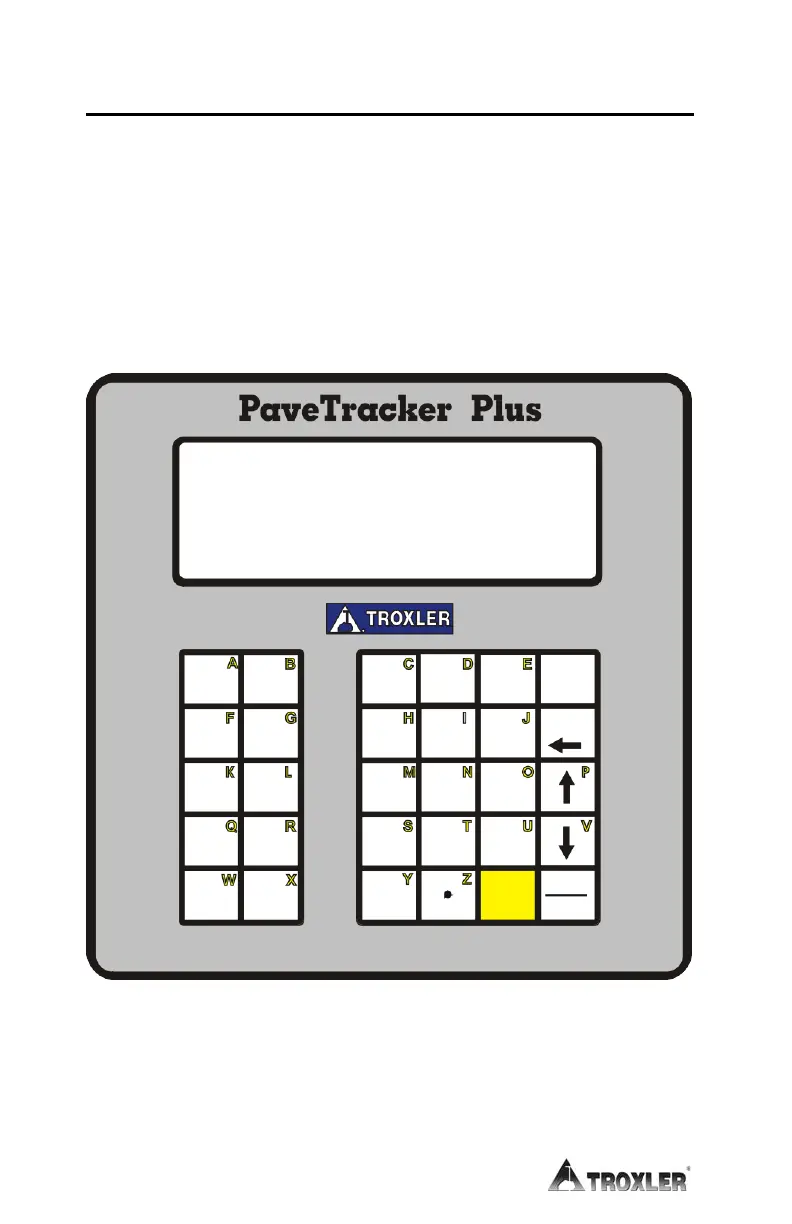

Figure 2–1. Model 2701-B Keypad
