ASSEMBLY STEPS

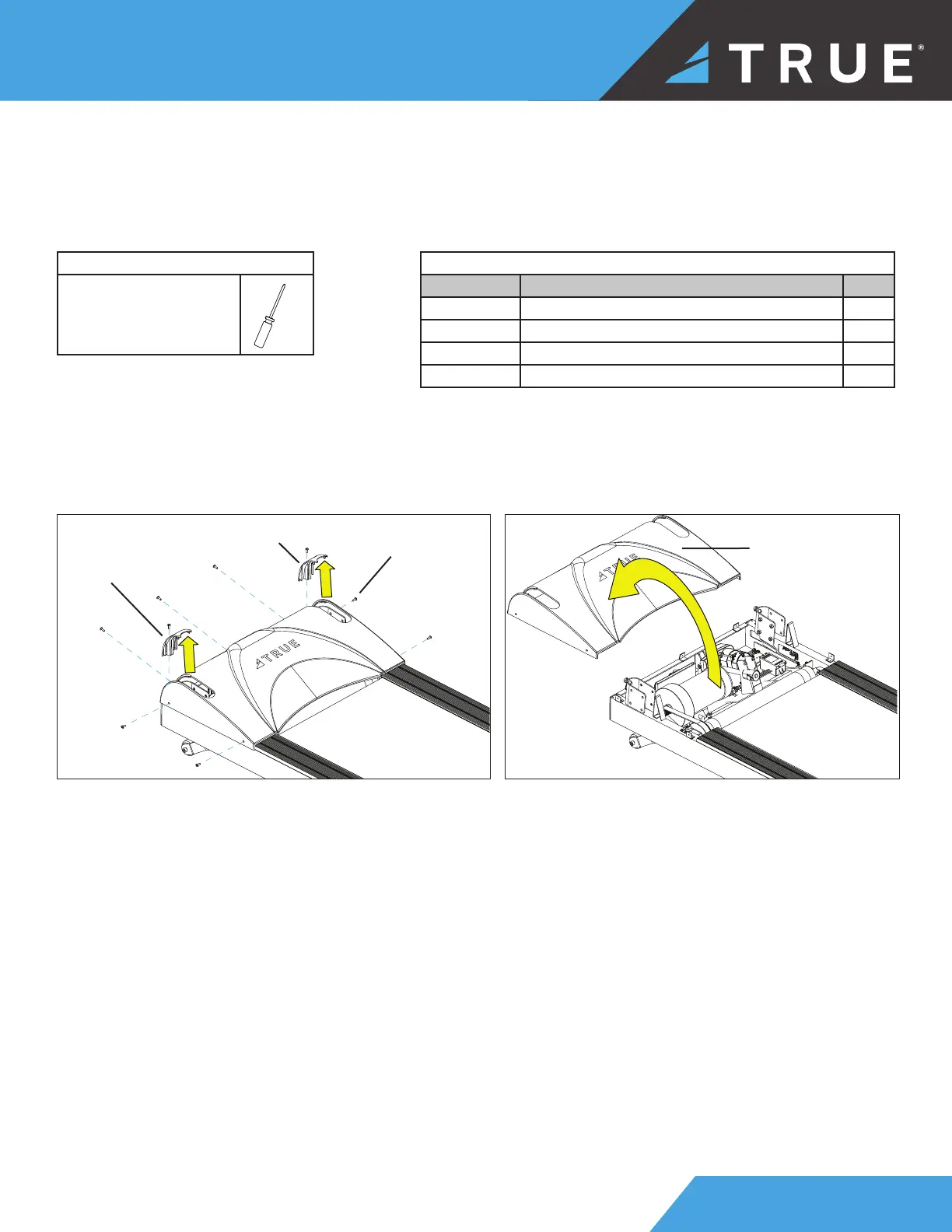

STEP 1—REMOVE MOTOR AND PEDESTAL COVERS
1. Remove and set aside the nine (9) screws securing the motor cover and pedestal covers to the treadmill frame.
2. Remove and set aside the covers.
PS0035
RT0020BK
RT0139BK
RT0140BK
Parts Used in this Step
Part Description Qty
PS0035 SCREW, M5 X P0.8 X 15 SCA5-15 9
RT0139BK COVER, LEFT, PEDESTAL COVER, BLACK 1
RT0140BK COVER, RIGHT, PEDESTAL COVER, BLACK 1
RT0020BK COVER, MOTOR, BLACK 1
Tools Used in this Step
#2 Phillips Screwdriver
To Next Page
