21

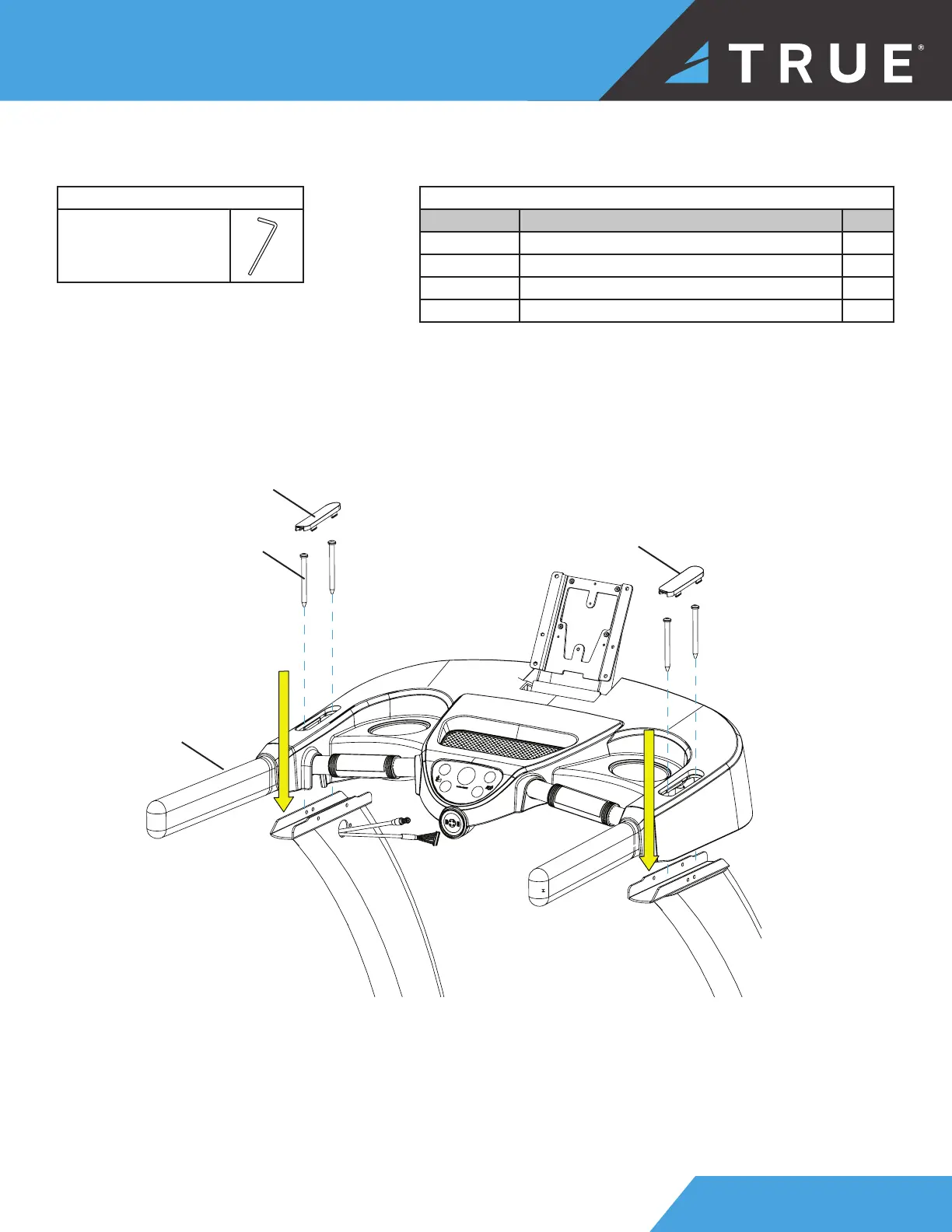

STEP 4—ATTACH THE UPPER ASSEMBLY
Parts Used in this Step
Part Description Qty
TPS9100 ASSEMBLY, UPPER, TPS 1
TPS8123 SCREW, M8 X 90MM 4
TPS9104 COVER, RIGHT, UPPER , TPS, BLACK 1
TPS9105 COVER, LEFT, UPPER, TPS, BLACK 1
Tools Used in this Step
5mm Allen Wrench
TPS9100
TPS8123
TPS9104
TPS9105
1. Attach the upper assembly to the pedestals using four (4) M8 screws.
2. Attach the left and right upper covers.
