INSTALLATION

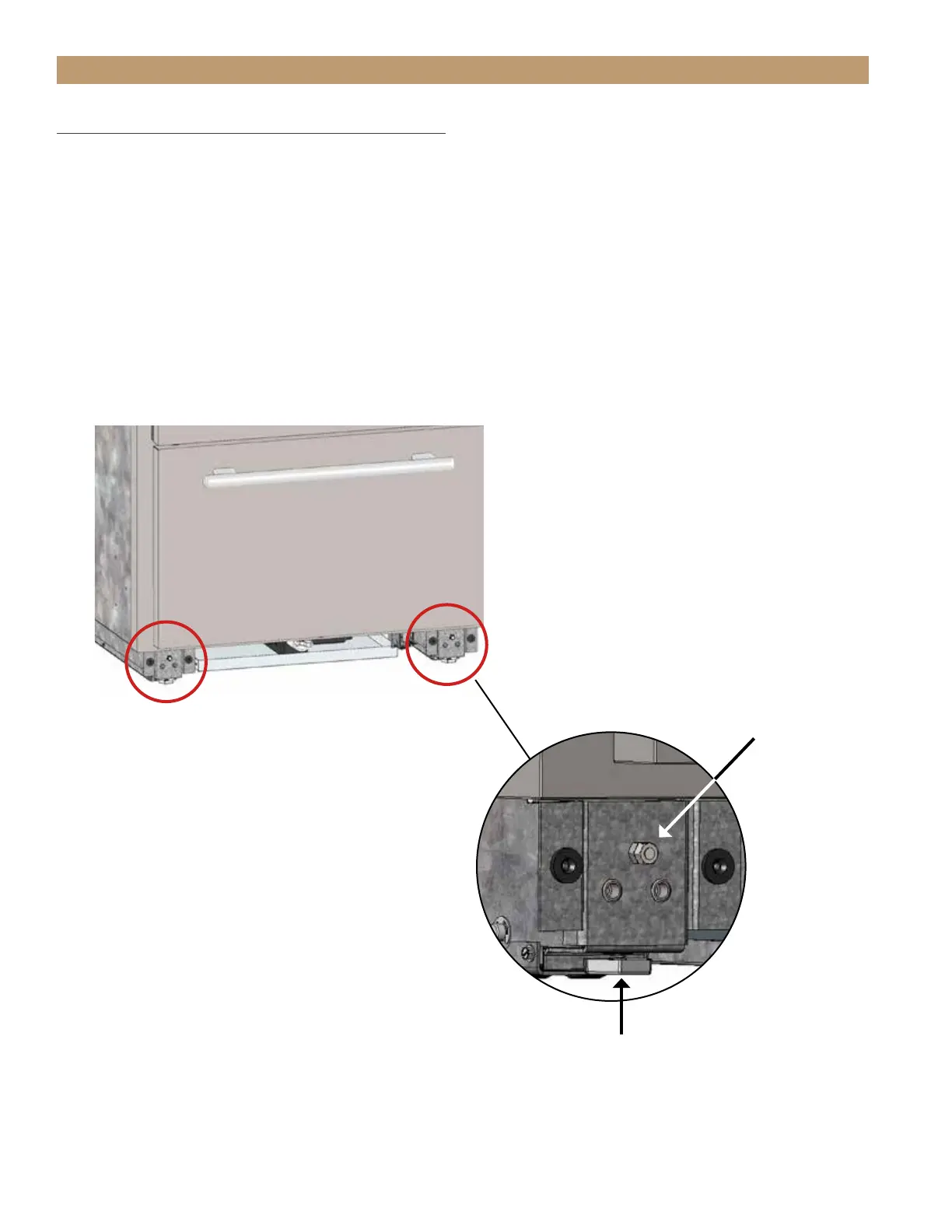

FIG. 1. Leveling leg adjustment locations.
LEVELING
It is important that your unit is level. This ensures the
doors align and seal correctly and drain pans do not
spill over.
1. Place a level on the interior floor on the unit. Check
the level back-to-front and side-to-side. See fig. 1
for leveling adjustment locations.
2. Adjust the front leveling legs as needed with pliers
or an adjustable wrench.
3. Adjust the rear leveling legs as needed with a 7/16”
socket. Turn clockwise to raise the rear of the unit.
Front leg adjustment
Rear leg adjustment
