38º F
0º F

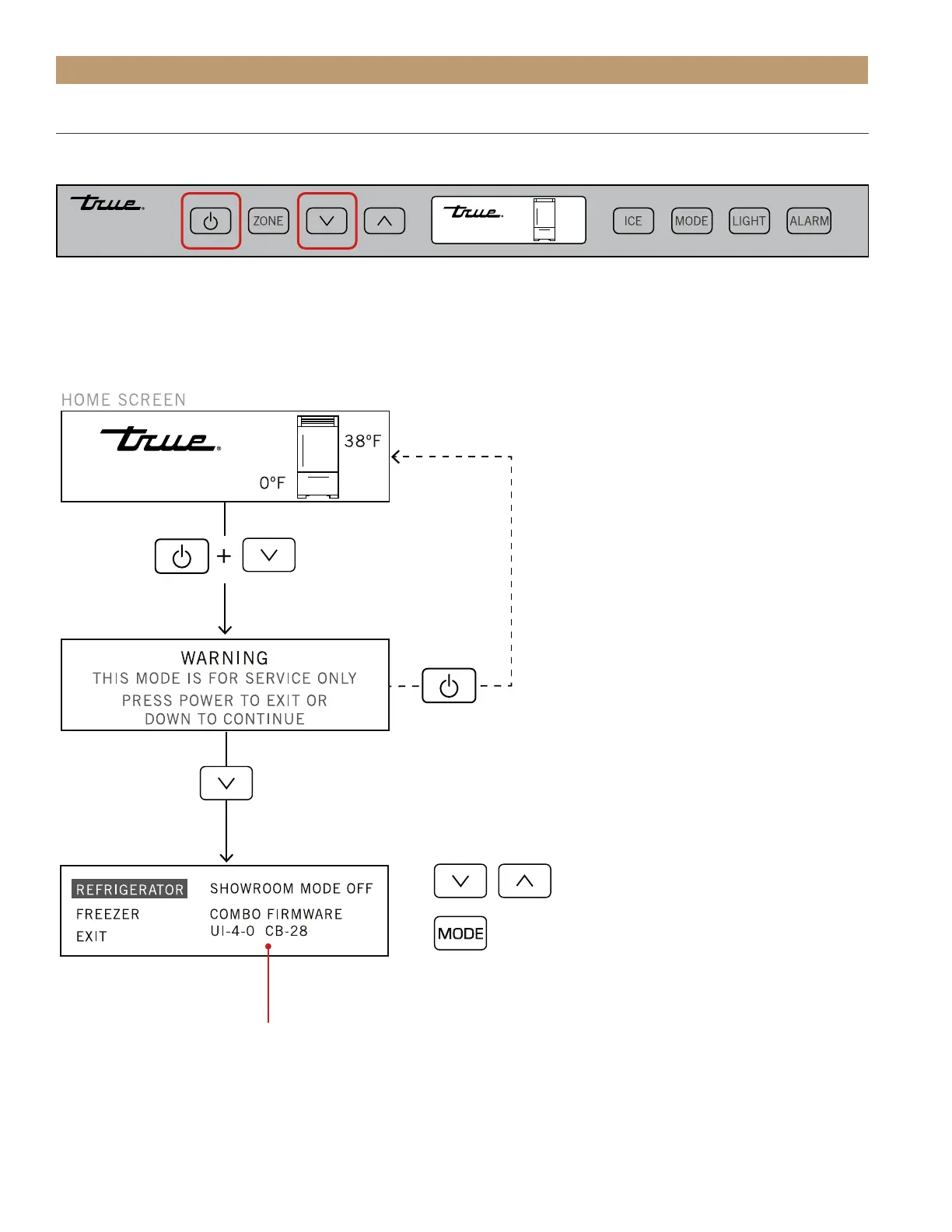

ELECTRONIC CONTROL OPERATION
SHOWROOM MODE
Showroom mode (found in the Service Menu) enables all cabinet functions except for refrigeration.
• Unless otherwise stated, the shown button commands are “press and release”.
• Shutting the door exits the menu to the Home screen.
To change selection (dark highlight/white text)
Will enter REFRIGERATOR/FREEZER SERVICE,
toggle SHOWROOM MODE ON/OFF or exit to home.
Showroom mode enables all cabinet functions
except for refrigeration.
UI-4-0 = USER INTERFACE FIRMWARE VERSION
CB-28 = CONTROL BOARD FIRMWARE VERSION
To Next Page
