TREADMILL ASSEMBLY STEPS:
Step 3 Frame Cable Connections:

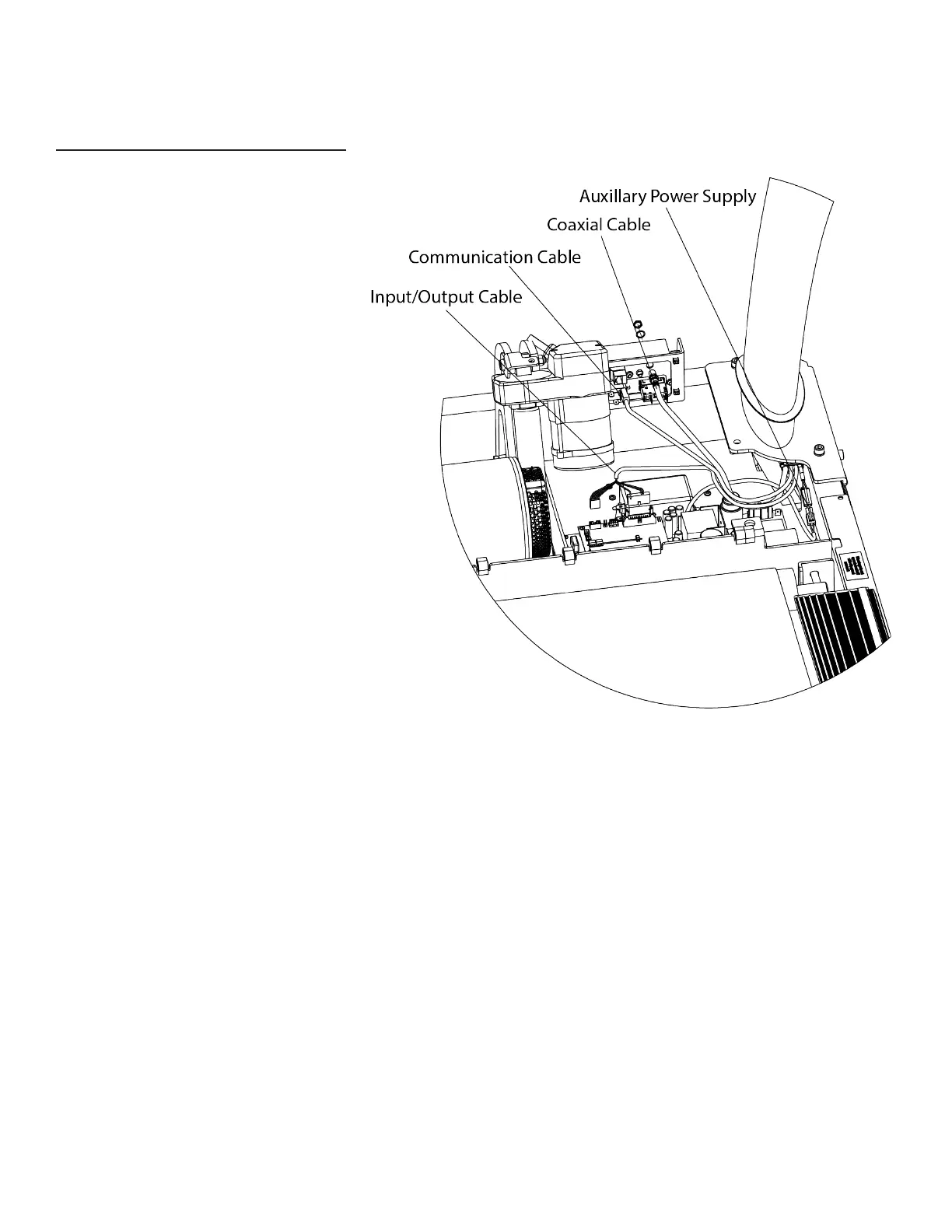

a) Route the cables exiting from the
right pedestal to the appropriate
connection point as shown. Cables will
be marked for easy identication.
b) Remove the nut and washer attached
to the coaxial cable as shown.
c) Pass the front of the coaxial cable
through the hole in the electrical panel
and reinstall the washer and nut on the
coaxial cable.
