CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100 29 of 62
TREADMILL ASSEMBLY STEPS:

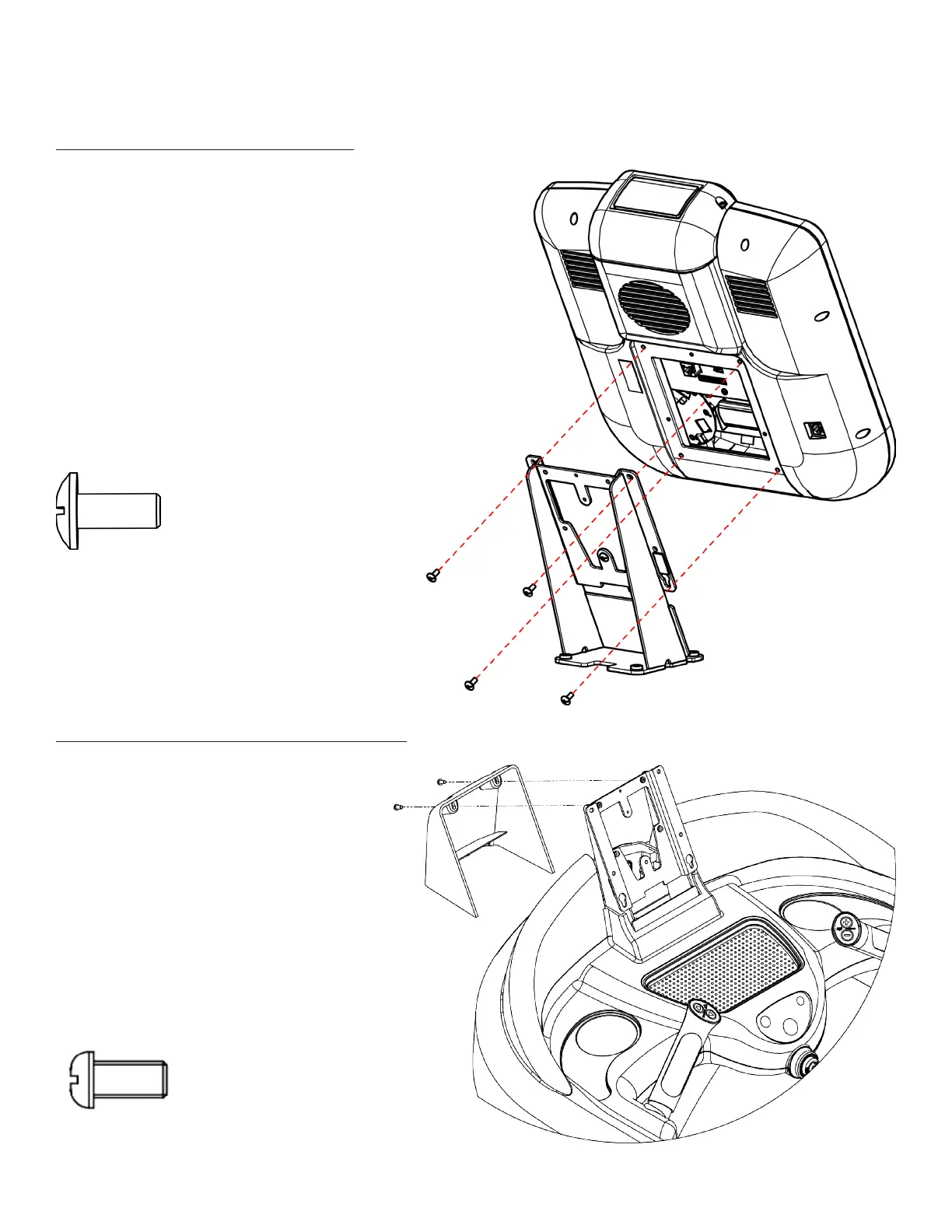

Step 16A Console Mast Assembly:
Step 16B Rear Console Cover Assembly:
a) Secure the rear console cover assembly to
the console mast assembly using two bolts
M5 x 10.
CAUTION: Make sure cabling is NOT
pinched during installation.
Note: For specic console assembly
instructions, see the corresponding
section at the end of Chapter 2: Assembly
Instructions.
Hardware Required:
Qty. 2: M5 x 10 bolts
Place the two bottom console mounting screws
inside the bottom keyholes on the console mast
assembly. Partially thread the two top console
mounting screws into the console. Fully tighten all
four console mounting screws.
Note: Ensure all cable connections are routed
inside the console mast assembly to prevent cable
pinching.
Note: Refer to the respective console manual
included with your console for wiring connections.
Hardware Required:
Part Number 00567800
Qty 4: M5 x 12 bolts
